Lamp-Fog-Left Front (MK74) (D4531A)

Harness-Family: HDLP_Dash

Color: NATURAL

Gender: FEMALE

Part Number: F750200

Part Description: 2W 1.5 GTS2 Female CONNECTOR

Connector No: D4531A

Option: MK74

Repair Kit Part Number: 68080449AA

Cavity Count: 2

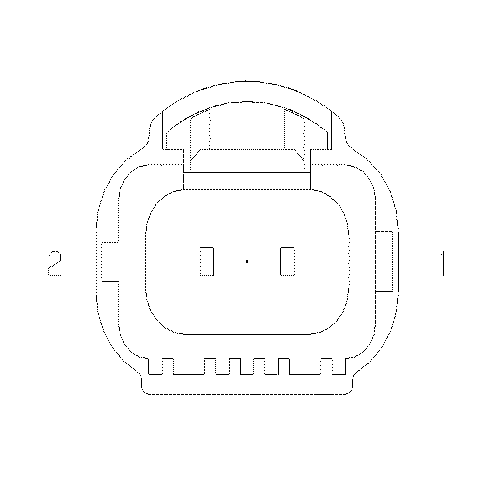

Fig 1: Lamp-Fog-Left Front Connector End View (MK74)

Courtesy of CHRYSLER

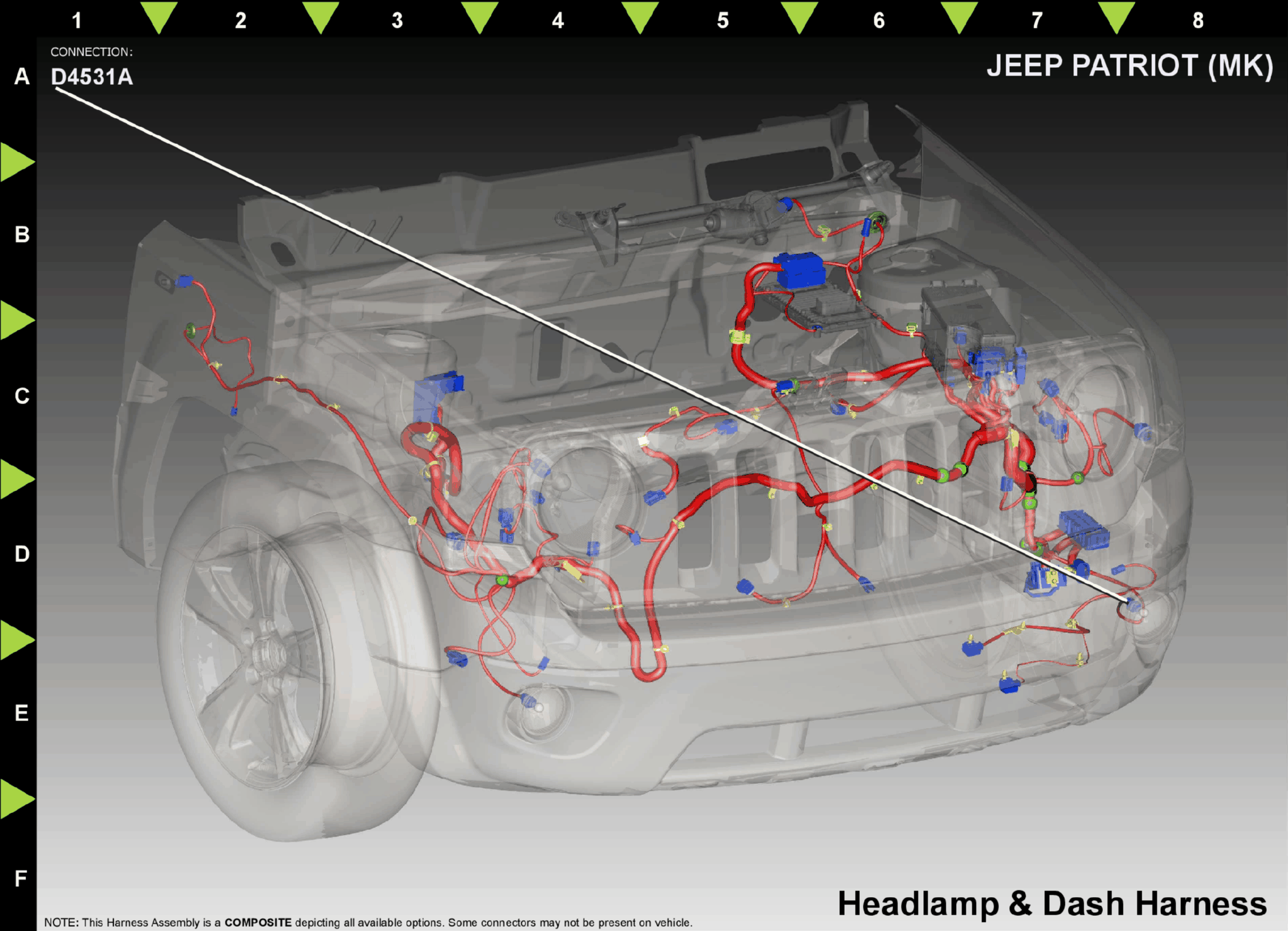

Fig 2: Lamp-Fog-Left Front Component Location (MK74)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L89

WT/YL

0.50

LEFT FRONT FOG LAMP CONTROL

N/A

Z906

0.50

GROUND

N/A

L89

WT/YL

0.50

LEFT FRONT FOG LAMP CONTROL

N/A

Z906

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
