Lamp-Reading-Front (D4549A)

Harness-Family: Headliner_NonSNR

Color: BLACK

Gender: FEMALE

Part Number: 12047781_12047783

Part Description: Not Available

Connector No: D4549A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Reading-Front Connector End View

GCWD1006598

Courtesy of CHRYSLER

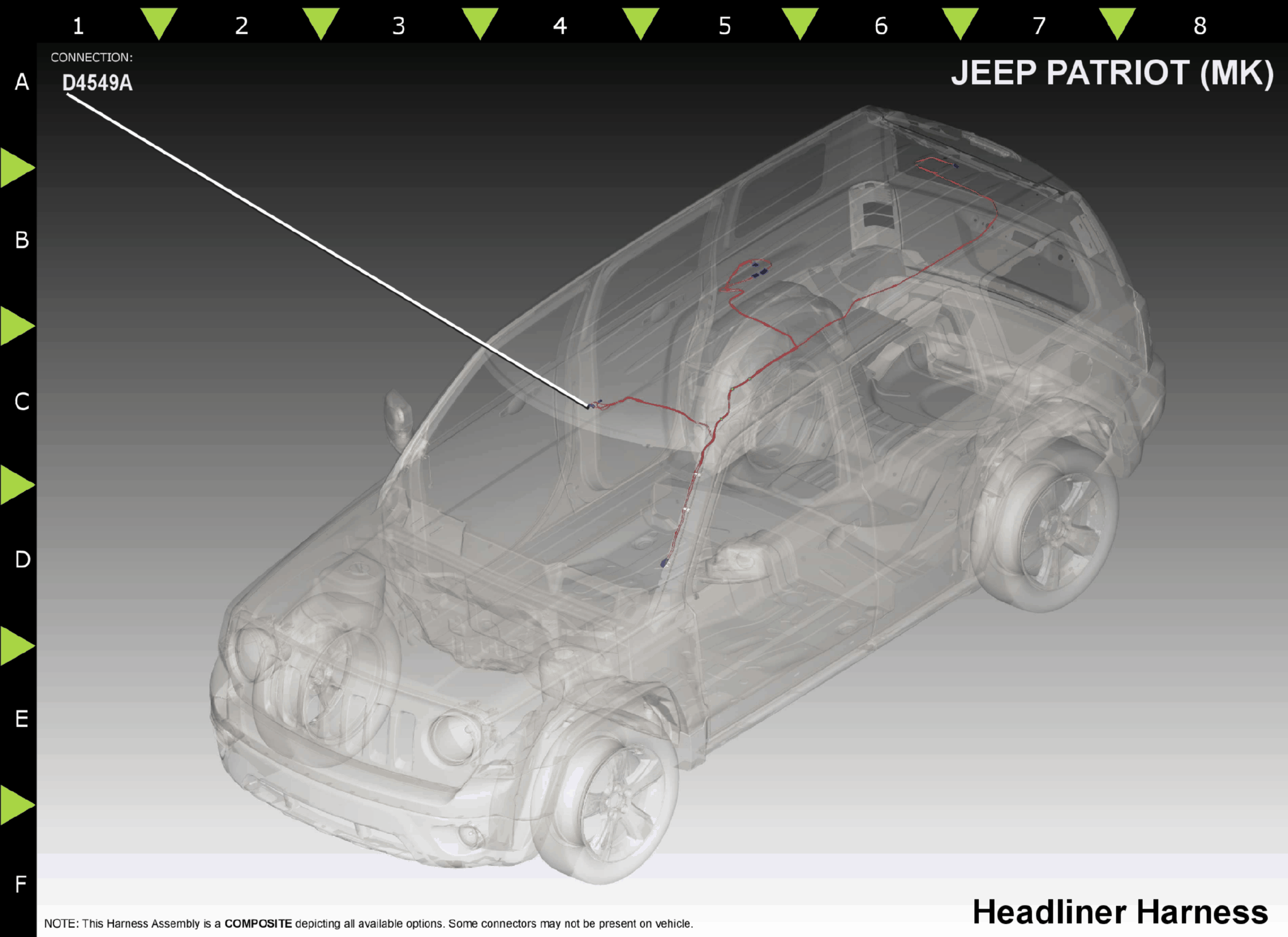

Fig 2: Lamp-Reading-Front Component Location

GCWD1211919

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

B

Z911

BK

0.35

GROUND

N/A

C

M24

YE/WH

0.35

COURTESY LAMPS DRIVER

N/A

A

M27

YE/BU

0.35

READING LAMPS DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
