Module-Totally Integrated Power C6 (D3830F)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-3523-40

Part Description: 13P (9P KAIZEN 0.64 + 4P YESC 1.5)

Connector No: D3830F

Option: Standard

Repair Kit Part Number: 68020745AA

Cavity Count: 13

Fig 1: Module-Totally Integrated Power C6 Connector End View

Courtesy of CHRYSLER

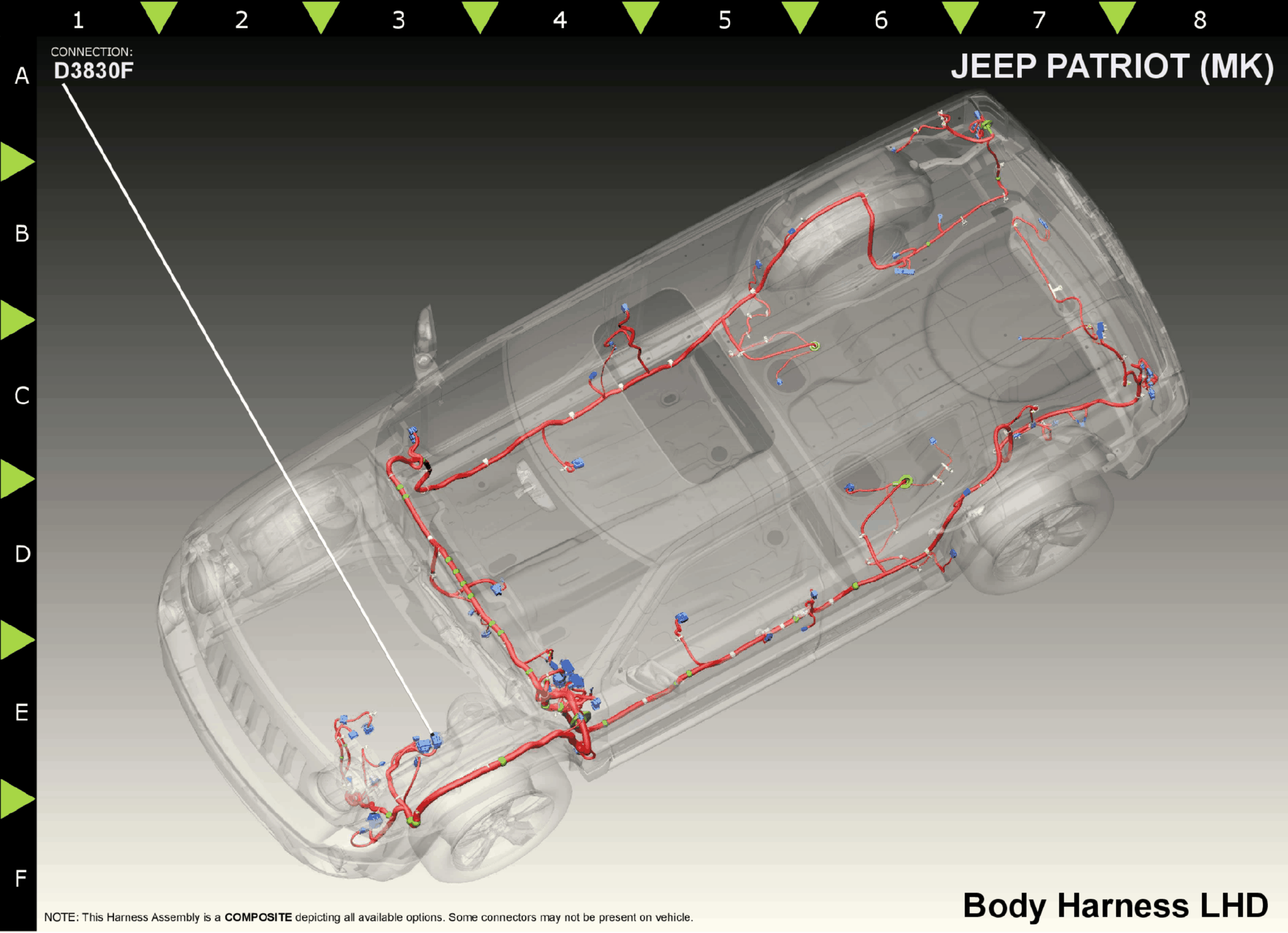

Fig 2: Module-Totally Integrated Power C6 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

GROUND

N/A

W13

BR/LG

0.50

REAR WIPER MOTOR CONTROL

N/A

L239

WT/DG

0.50

REAR FOG LAMP RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
