Motor-Seat Adjuster-Front Driver Vertical (RHD) (D3031A)

Harness-Family: Seat_Right

Color: GRAY

Gender: FEMALE

Part Number: 1326490-3

Part Description: 4P RECEPTACLE HOUSING - 2X JPT + 2X MT3

Connector No: D3031A

Option: RHD

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Seat Adjuster-Front Driver Vertical Connector End View (RHD)

Courtesy of CHRYSLER

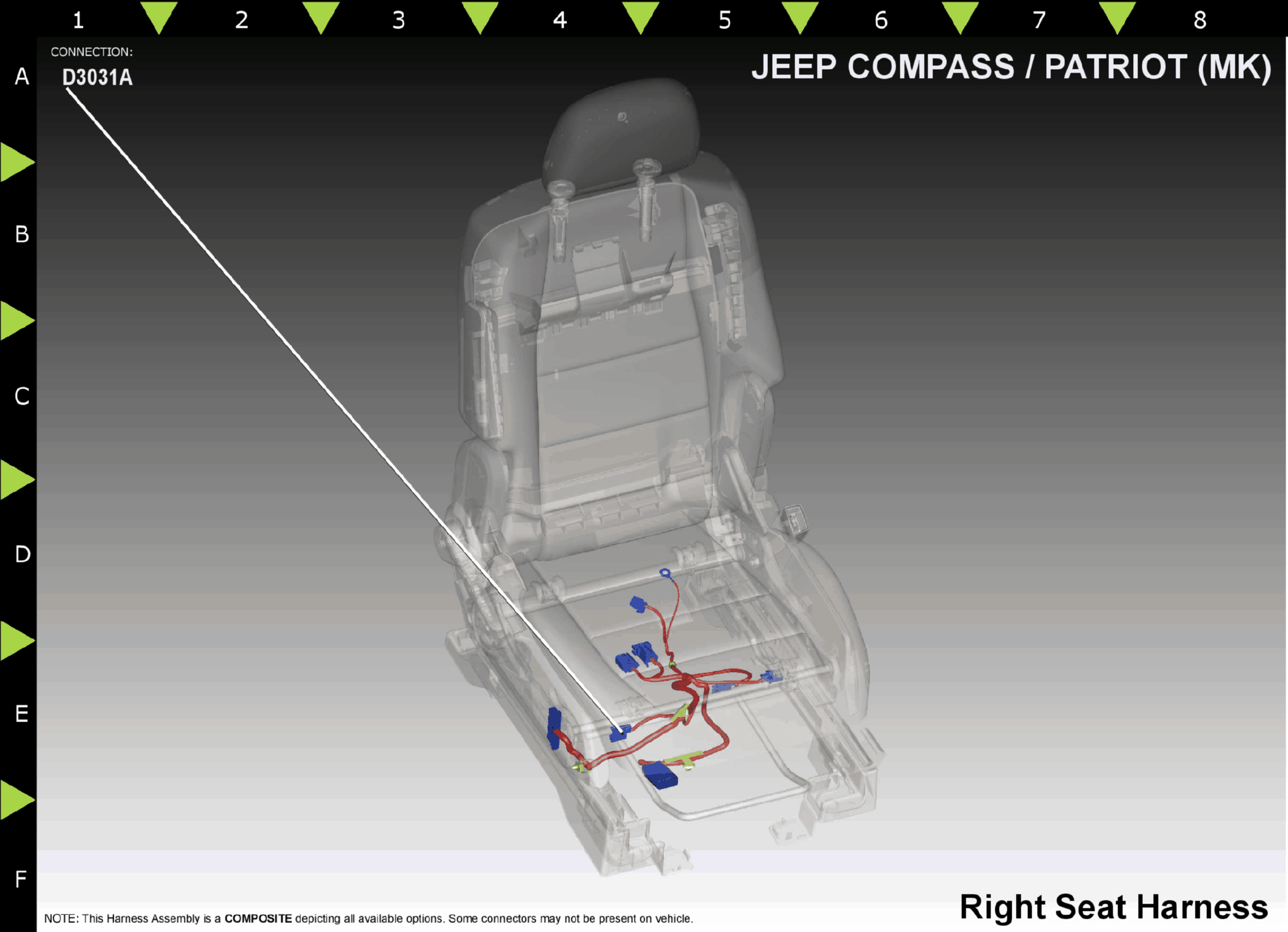

Fig 2: Motor-Seat Adjuster-Front Driver Vertical Component Location (RHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P21

LG/TN

DRIVER SEAT FRONT DOWN DRIVER

RHD

P19

LG/LB

DRIVER SEAT FRONT UP DRIVER

RHD

⁽¹⁾	Pins not listed are not used for this connector
