Sensor-Wheel Speed-Abs-Right Rear (D1575A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7287-1598-30

Part Description: 2P 1.5 YESC RP SLD (WHEEL SPEED) W/ CPA

Connector No: D1575A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

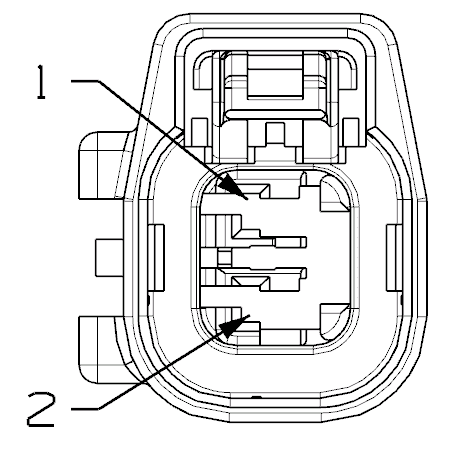

Fig 1: Sensor-Wheel Speed-ABS-Right Rear Connector End View

Courtesy of CHRYSLER

Fig 2: Sensor-Wheel Speed-ABS-Right Rear Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

DG/LB

0.50

RIGHT REAR WHEEL SPEED SENSOR (+)

N/A

YL/DB

0.50

RIGHT REAR WHEEL SPEED SENSOR (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
