Sf202 (Body)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SF202

Option: BODY

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sf202 Connector End View (Body)

GCWD1006420

Courtesy of CHRYSLER

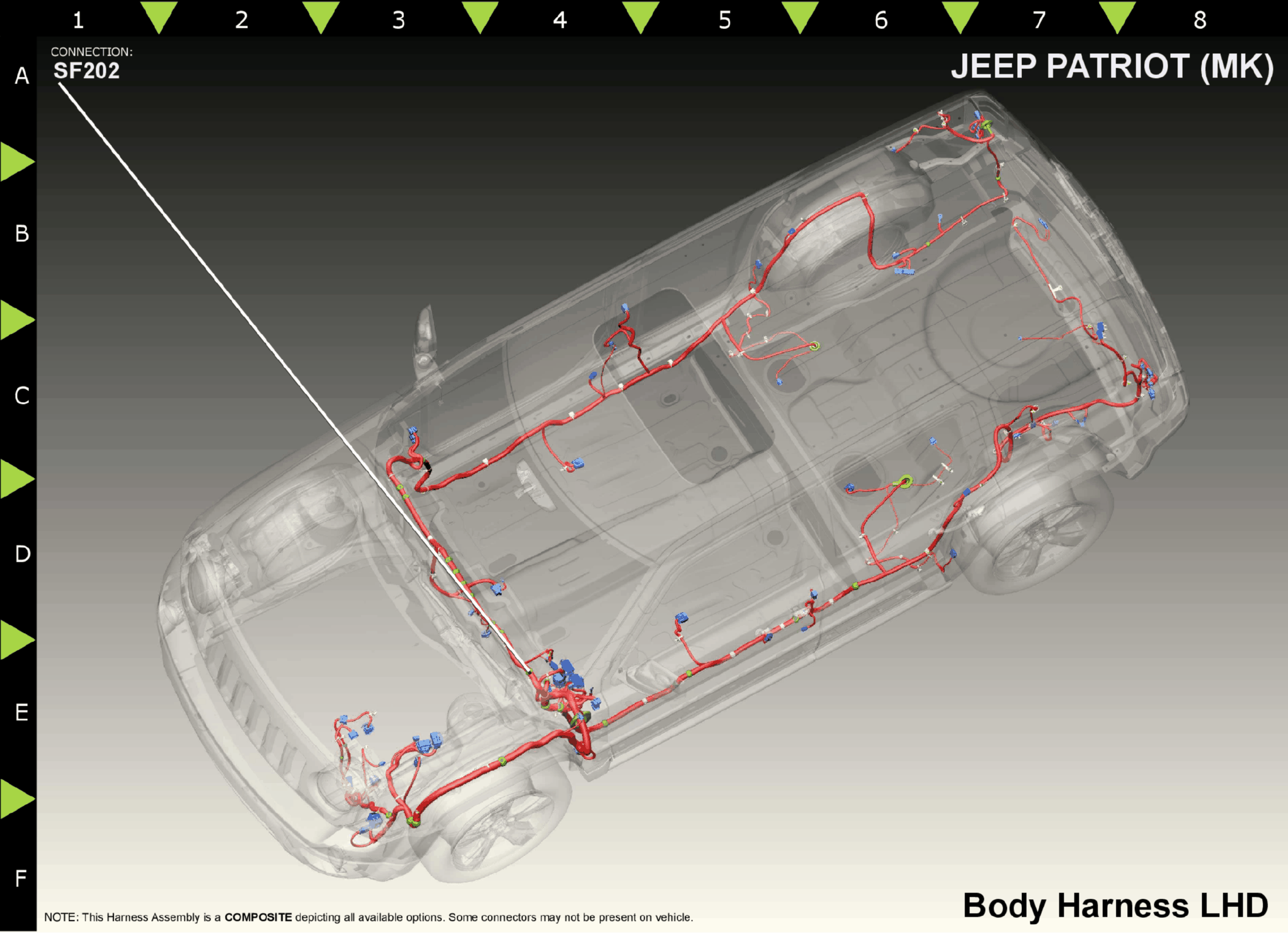

Fig 2: Sf202 Component Location (Body)

GCWD1211951

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F202

PK/GY

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
