Switch-Horn (D2246A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1507

Part Description: INSULATOR

Connector No: D2246A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

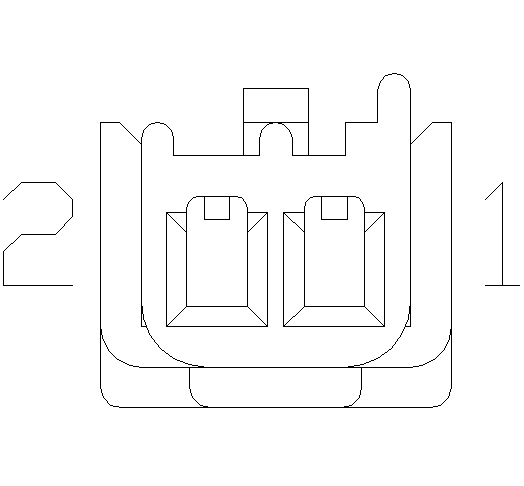

Fig 1: Switch-Horn Connector End View

GCWD1016869

Courtesy of CHRYSLER

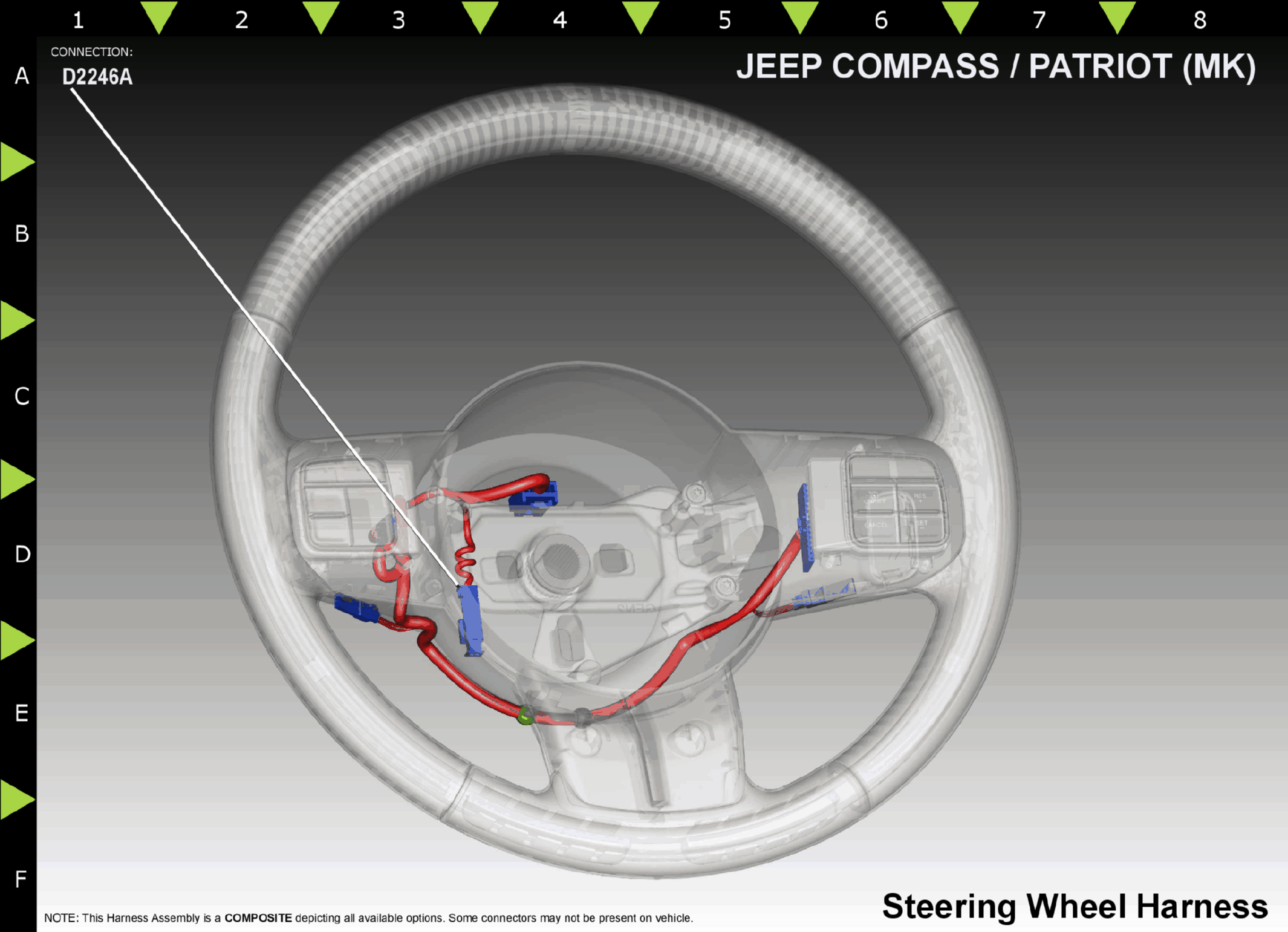

Fig 2: Switch-Horn Component Location

GCWD1160430

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X920

BR

0.35

RADIO CONTROL MUX RETURN

N/A

2

X3

WT/PK

0.35

HORN SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
