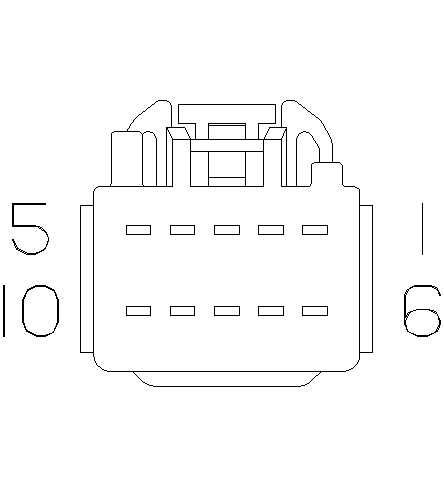

Switch-Mirror (RHD) (D2272A)
Harness-Family: Door_Front_Right
Color: GREEN
Gender: FEMALE
Part Number: 7283-5807-60
Part Description: Not Available
Connector No: D2272A
Option: RHD
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P110 | LG/WT | 0.50 | MIRROR FOLD DRIVER | N/A | ||
| 2 | F981 | PK/BR | 16 | FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT | N/A | ||
| 3 | P76 | YE/PK | 0.50 | MIRROR COMMON DRIVER | N/A | ||
| 4 | Z919 | BK/LB | 0.50 | GROUND | N/A | ||
| 5 | A417 | RD/DG | 0.50 | FUSED B(+) | N/A | ||
| 6 | P72 | BG/GY | 0.50 | PASSENGER MIRROR VERTICAL DRIVER | N/A | ||
| 7 | P71 | BG/DG | 0.50 | DRIVER MIRROR VERTICAL DRIVER | N/A | ||
| 8 | P74 | BG/OR | 0.50 | PASSENGER MIRROR HORIZONTAL DRIVER | N/A | ||
| 9 | P75 | BG/OR | 0.50 | DRIVER MIRROR HORIZONTAL DRIVER | N/A | ||
| 10 | P699 | LG/DG | 0.50 | MIRROR POWER FOLDING/UNFOLDING | N/A | ||
|
|||||||
