Switch-Speed Control (D2213A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9415

Part Description: Not Available

Connector No: D2213A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 15

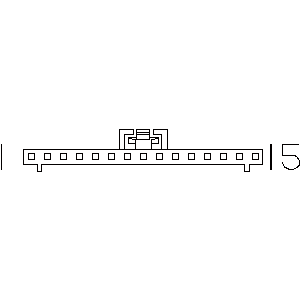

Fig 1: Switch-Speed Control Connector End View

GCWD1052537

Courtesy of CHRYSLER

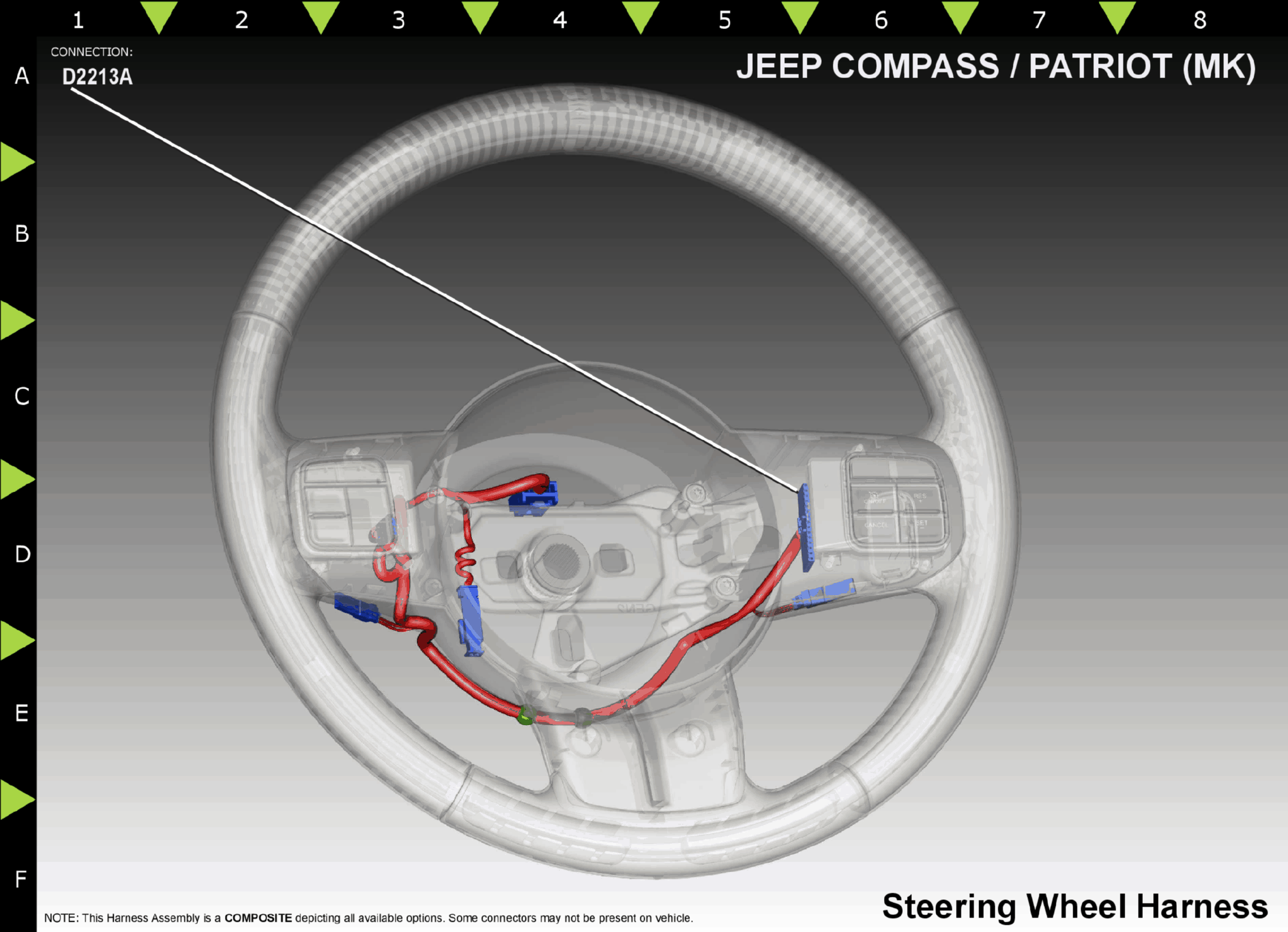

Fig 2: Switch-Speed Control Component Location

GCWD1160389

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D507

BK

0.35

LIN BUS

N/A

2

E3

DB

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

3

G106

DG

0.35

EVIC MUX SIGNAL

N/A

4

X20

RD

0.35

RADIO CONTROL MUX

N/A

6

A909

PK

0.35

FUSED B(+)

N/A

7

X3

WT/PK

0.35

HORN SWITCH SENSE

N/A

8

Z911

WT/YL

0.35

GROUND

N/A

9

G907

DB/WT

0.35

EVIC MUX RETURN

N/A

10

X920

BR

0.35

RADIO CONTROL MUX RETURN

N/A

13

V72

YL/BK

0.35

S/C SIGNAL 2

N/A

14

V937

GY

0.35

S/C SWITCH GROUND

N/A

15

V71

LG

0.35

S/C SIGNAL 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
