Switch-Window/Door Lock-Passenger (LHD) (D2302A)

Harness-Family: Door_Front_Right

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-3243-40

Part Description: KAIZEN YESC SUB ASSEMBLY

Connector No: D2302A

Option: LHD

Repair Kit Part Number: 68020743AA

Cavity Count: 8

Fig 1: Switch-Window/Door Lock-Passenger Connector End View (LHD)

Courtesy of CHRYSLER

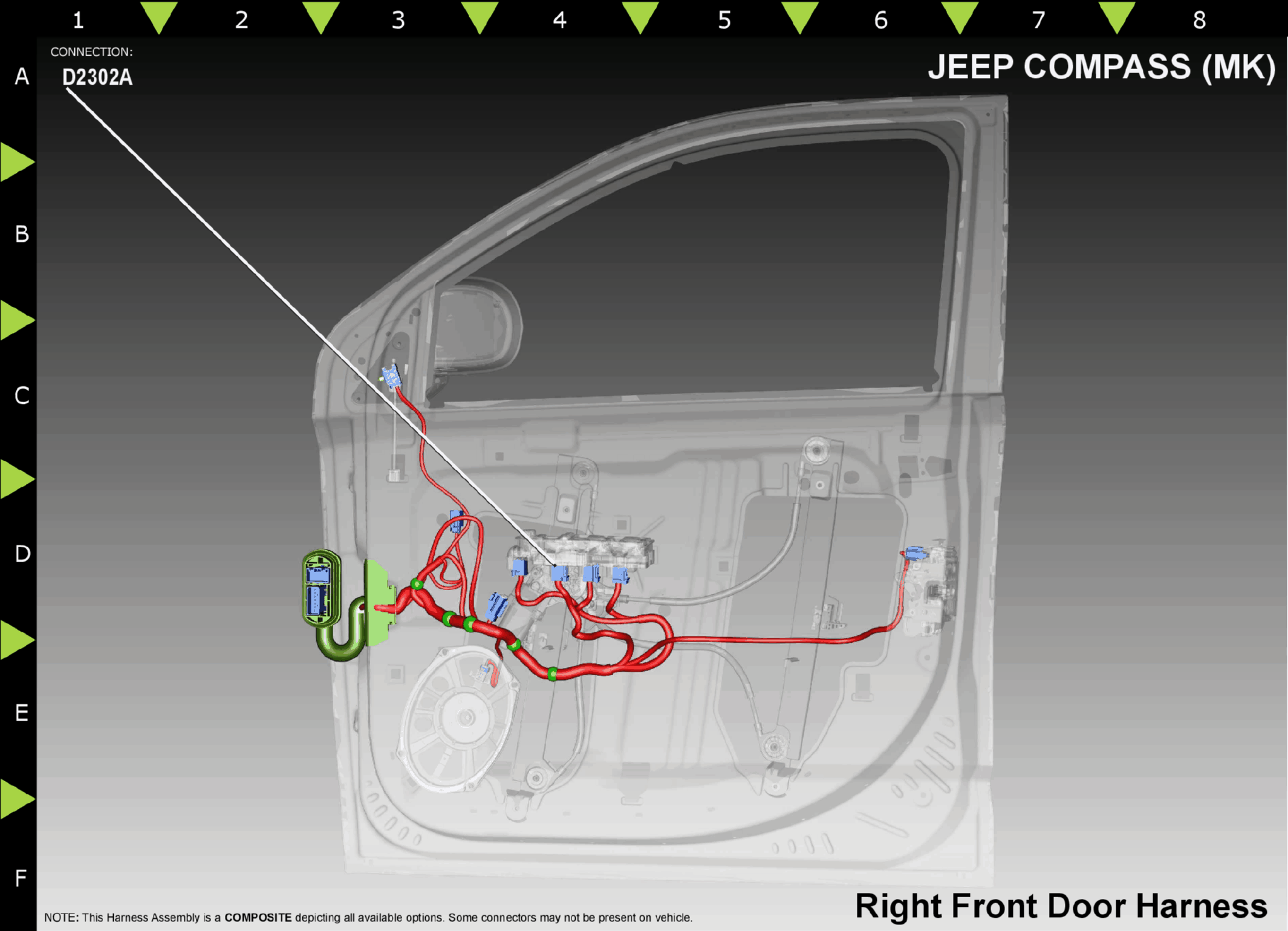

Fig 2: Switch-Window/Door Lock-Passenger Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q26

OR/GY

MASTER WINDOW SWITCH RIGHT FRONT (DOWN)

N/A

Q22

OR/VT

PASSENGER WINDOW DRIVER (DOWN)

N/A

Q12

OR/BR

PASSENGER WINDOW DRIVER (UP)

N/A

Q15

OR/RD

WINDOW LOCK OUT SWITCH OUTPUT

N/A

F981

PK/YE

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

P696

LG/WT

0.35

PASSENGER DOOR LOCK SWITCH MUX

N/A

Z924

BK/LB

0.50

GROUND

N/A

Q16

OR/BG

MASTER WINDOW SWITCH RIGHT FRONT (UP)

N/A

⁽¹⁾	Pins not listed are not used for this connector
