Transponder-Tire Pressure-Left Front (D8120A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1-638514-2

Part Description: CONNECTOR ASSEMBLY

Connector No: D8120A

Option: Standard

Repair Kit Part Number: 68032364AA

Cavity Count: 6

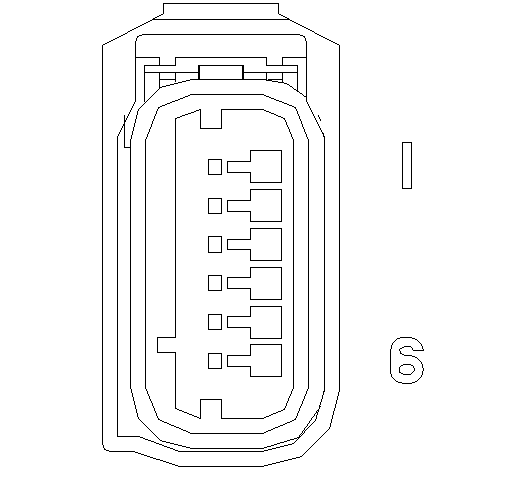

Fig 1: Transponder-Tire Pressure-Left Front Connector End View

Courtesy of CHRYSLER

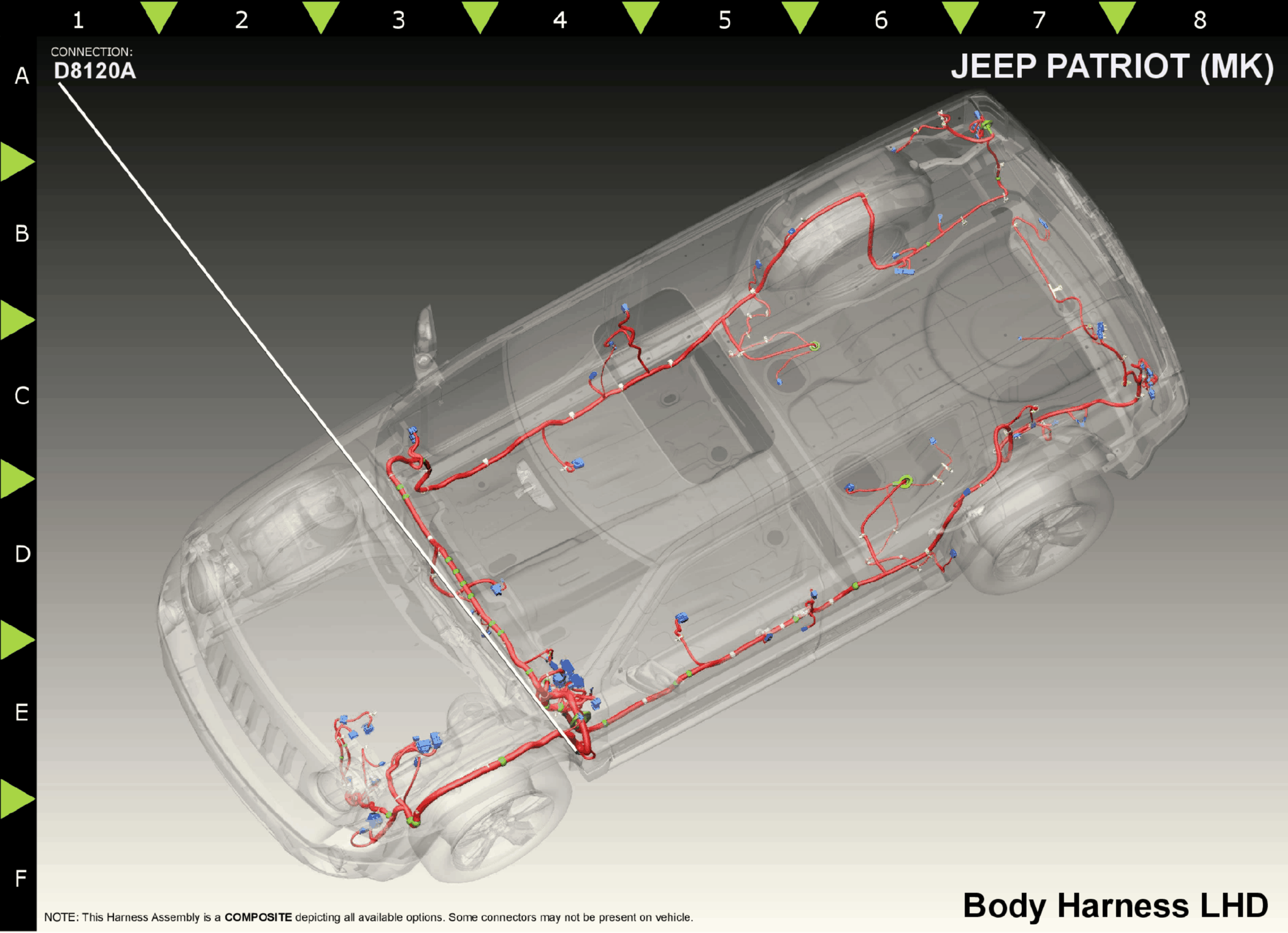

Fig 2: Transponder-Tire Pressure-Left Front Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F202

PK/GY

0.80

IGNITION RUN/START CONTROL OUTPUT

N/A

D508

WT/GY

0.50

LIN TIRE PRESSURE MONITOR LAN

N/A

Z919

BK/OR

0.50

GROUND

N/A

Z919

BK/OR

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
