Diagnostic Test

DTC STATUS IS ACTIVE
1. Ignition on, engine not running.
  NOTE:
  If a system or battery voltage high DTC is set in the Wireless Control Module (WCM) or in the PCM, repair the voltage DTC before continuing with this test.
2. With the scan tool, select View DTCs in the Wireless Control Module (WCM).
  Is the DTC status Active at this time?

  Yes
  - Go To 2
  No
  - Go To 6
(F202) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN OR HIGH RESISTANCE

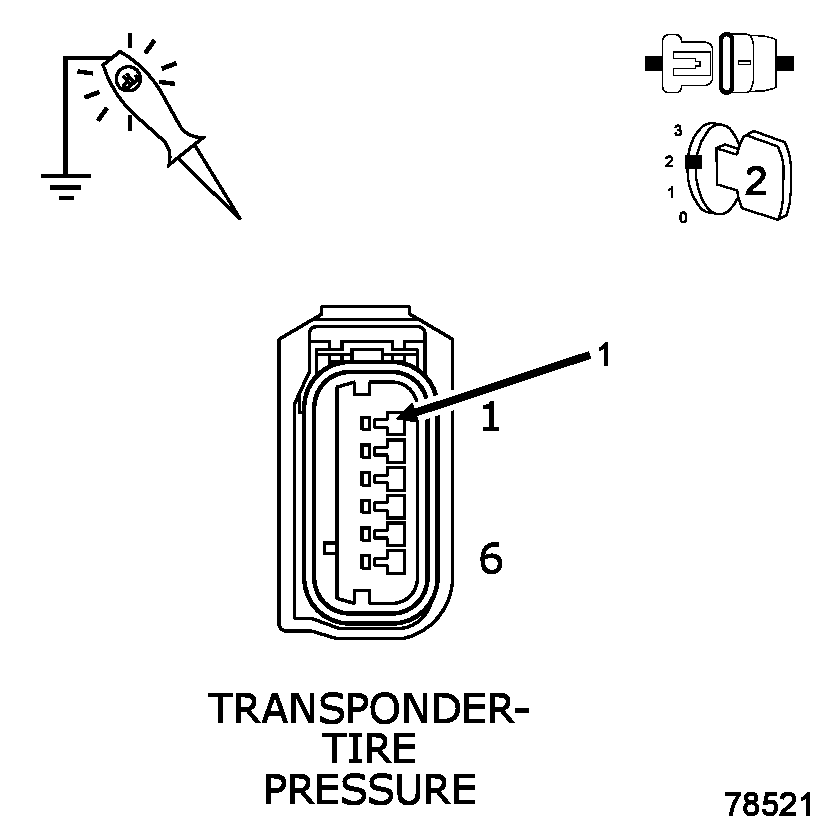

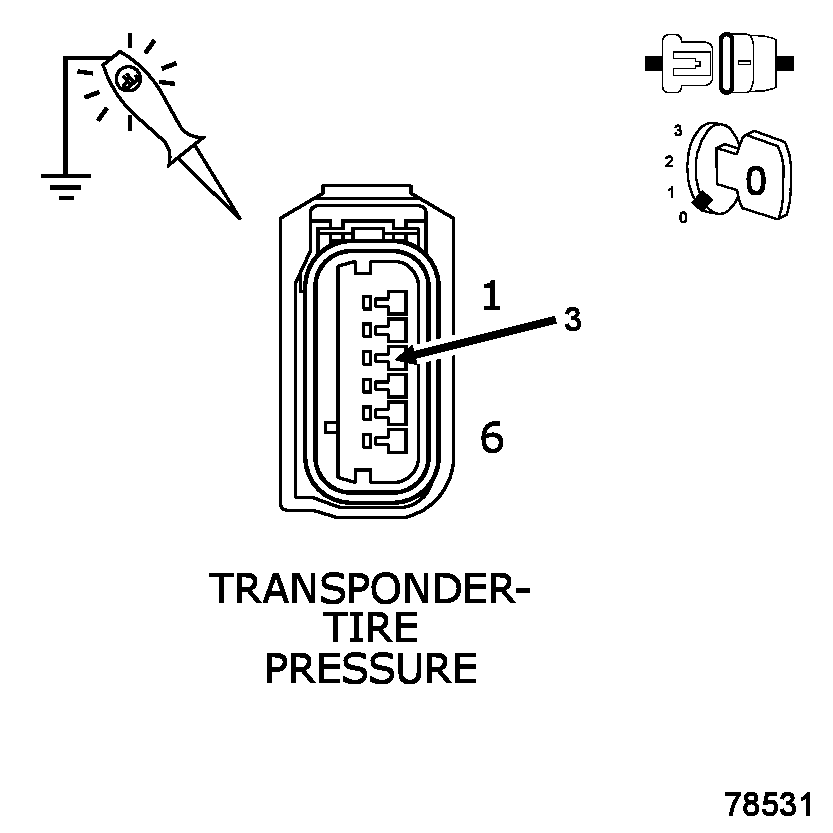

Fig 1: Checking Fused Ignition Switch Output (Run) Circuit For An Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Ignition on, engine not running.
2. Using a 12-volt test light connect to ground, check the (F202) Fused Ignition Switch Output (Run) circuit.
  NOTE:
  The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go To 3
  No
  - Repair the (F202) Fused Ignition Switch Output (Run) circuit for an open circuit or high resistance.
  - Perform TPM VERIFICATION TEST. Refer to TPM VERIFICATION .
(Z904) GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE

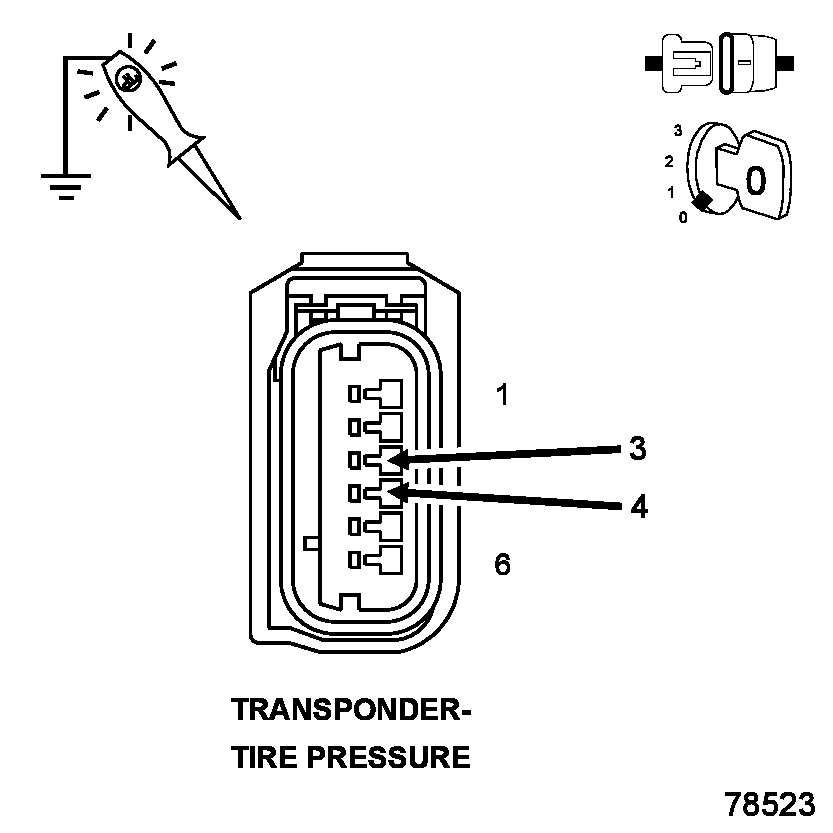

Fig 2: Checking Ground Circuit(s) For An Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Using a 12-volt test light connect to 12 volts, check each of the (Z904) Ground circuit(s).
  NOTE:
  The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go To 4
  No
  - Repair the (Z904) Ground circuit(s) for an open circuit or high resistance.
  - Perform TPM VERIFICATION TEST. Refer to TPM VERIFICATION .
TIRE PRESSURE TRIGGER MODULE
1. Turn the ignition off.
2. Replace the appropriate Tire Pressure Trigger Module in accordance with the Service Information.
3. With the scan tool, clear DTCs in the Wireless Control Module (WCM).
4. Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 mph (24 km/h).
5. With the scan tool, select View DTCs in the Wireless Control Module (WCM).
  Does the DTC reset or is the status Active for this DTC?

  Yes
  - Go To 5
  No
  - Test Complete.
  - Perform TPM VERIFICATION TEST. Refer to TPM VERIFICATION .
WIRELESS CONTROL MODULE (WCM)
1. View repair.
  Repair
  - Replace the Wireless Control Module (WCM) in accordance with the Service Information.
  - Perform TPM VERIFICATION TEST. Refer to TPM VERIFICATION .
INTERMITTENT TIRE PRESSURE TRIGGER MODULE DTC
1. The conditions necessary to set this DTC are not present at this time.
2. Refer to any Technical Service Bulletins that may apply to this condition.
3. With the scan tool, clear DTCs in the Wireless Control Module (WCM).
4. Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 mph (24 km/h).
5. With the scan tool, select View DTCs in the Wireless Control Module (WCM).
  Does the DTC reset or is the status Active for this DTC?

  Yes
  - Return to the first step of this test and perform the diagnostic procedure.
  No
  - Test complete.
  - Perform TPM VERIFICATION TEST. Refer to TPM VERIFICATION .
