Vehicle Theft Security (Service Information): Siren: Removal: Removal

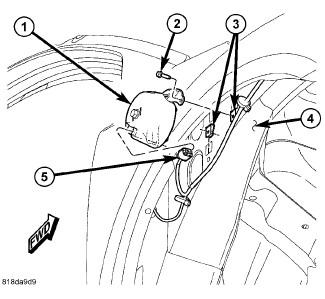

Fig 1: Removing/Installing Siren

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative cable from the battery.
2. Remove the splash shield from the right front wheel house. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
3. Locate the alarm siren module (1) on the outboard side of the right front fender load path beam (4).
4. Disconnect the engine compartment wire harness connector (5) from the connector receptacle near the back of the siren.
5. Remove the two screws (2) that secure the siren mounting bracket to the load path beam.
6. Remove the siren and mounting bracket from the load path beam as a unit.
