Seal, Output Flange: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER GROUP, LLC
- Raise the vehicle on a hoist.
- Remove right side halfshaft. Refer to REMOVAL
.

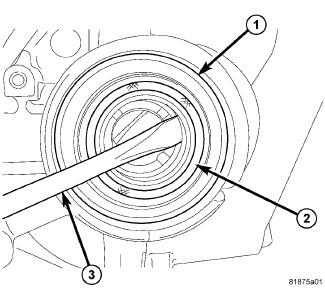

- Remove the pinion side seal (2).
Courtesy of CHRYSLER GROUP, LLC
- Remove left side halfshaft. Refer to REMOVAL
.

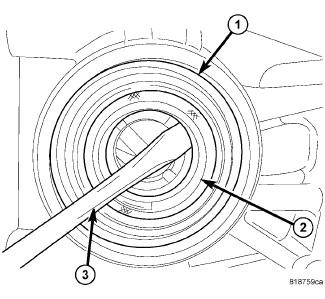

- Remove ring gear side seal.
