Gas Engine - Without A/C Compressor

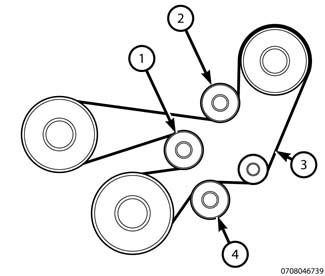

Fig 1: Accessory Drive Belt - World Engine Without A/C
GC0162919Courtesy of CHRYSLER GROUP, LLC
  1. Using a wrench, rotate accessory drive belt tensioner (1) counterclockwise until accessory drive belt (3) can be removed from idler pulleys (2 and 4).
  2. Remove accessory drive belt (3).
