Dust Covers And Caps

WARNING: This page is about a different variant/trim than selected.

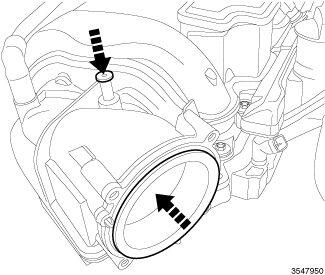

Fig 1: Covers/Caps

Courtesy of CHRYSLER GROUP, LLC

NOTE: Illustration shown as example only.

To avoid the possibility of dust, dirt, moisture and other foreign debris being introduced to the engine during service, cover or cap all openings when hoses and tubes are removed.

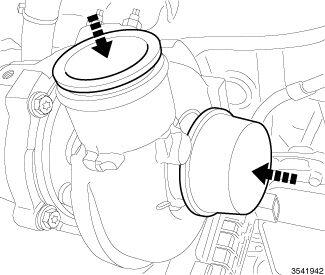

Fig 2: Opening Cover

Courtesy of CHRYSLER GROUP, LLC

NOTE: Illustration shown as example only.

Covers installed over openings will reduce the possibility of foreign materials to entering the engine systems. Using miller tool Universal Protective Cap Set (special tool #10368, Set, Universal Protective Cap), select the appropriate cover needed for the procedure.
