Air Cleaner: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Retainers, Fresh Air Inlet Duct & Air Cleaner Body

Courtesy of CHRYSLER GROUP, LLC

Unlock the retainers (2) and remove the fresh air inlet duct (3) from air cleaner housing (1).
Remove the support bracket bolt from the strut tower.
Remove the screws that hold the cover on the air cleaner housing.

Fig 2: Electrical Connectors At Powertrain Control Module (PCM) - DO NOT Unplug
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do Not unplug the electrical connectors from the Powertrain Control Module (PCM). A possible voltage spike can erase and damage the PCM.
Position the air cleaner housing cover aside.

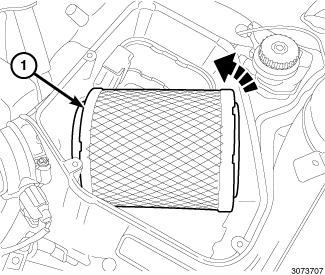

Fig 3: Air Cleaner Element
Courtesy of CHRYSLER GROUP, LLC
Remove the air cleaner element (1).
If necessary, clean the inside of the air cleaner housing.
