Bucket, Tappet: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

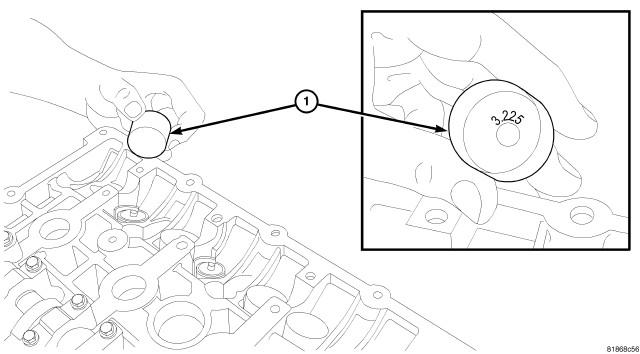

Fig 1: Tappet Identification

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If reinstalling original tappets they must go back in their original location or engine damage could result.

Apply a light coat of clean engine oil to camshafts tappets (1) prior to assembly.
Install camshaft tappets (1) into cylinder head.
Repeat installation procedure for each camshaft tappet.
Install camshafts . Refer to CAMSHAFT, ENGINE, INSTALLATION .
NOTE:
If installing new tappets, the valve lash procedure must be performed.

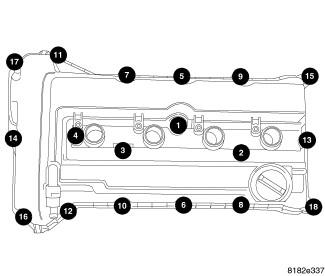

Fig 2: Cylinder Head Cover Bolts Torque Sequence
Courtesy of CHRYSLER GROUP, LLC
Install cylinder head cover . Refer to COVER(S), CYLINDER HEAD, INSTALLATION .
