Cover(S), Cylinder Head: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Cover - 2.4L
GC0084905Courtesy of CHRYSLER GROUP, LLC
  1. Remove engine cover (1) by pulling upward.
  2. Disconnect and isolate the negative battery cable.

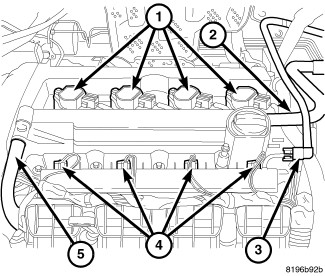

    Fig 2: Ignition Coils, Air Hose, Fuel Line, Injectors & PCV Hose
    GC0085580Courtesy of CHRYSLER GROUP, LLC
  3. Remove make up air hose (2).
  4. Remove PCV hose (5).
  5. Disconnect ignition coil electrical connectors (1).
    Fig 3: Removing/Installing Cylinder Head Cover Bolts - Torque Sequence
    GC0082424Courtesy of CHRYSLER GROUP, LLC
  6. Use compressed air to blow dirt and debris off the cylinder head cover prior to removal.
  7. Remove cylinder head cover bolts.
  8. Remove cylinder head cover from cylinder head.
