Insulator, Engine Mount, Left: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
Fig 1: Retainers, Fresh Air Inlet Duct & Air Cleaner Body
GC0145275Courtesy of CHRYSLER GROUP, LLC
  1. Unlock the retainers (2) and remove the fresh air inlet duct (3) from air cleaner body (1).
    Fig 2: Electrical Connectors, PCM, Three Mounting Bolts & Ground Wire
    GC0145274Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect and isolate the negative battery cable.
  3. Unlock and disconnect the electrical connectors (2) from the PCM (4).
  4. Remove the mounting bolt (3) and ground wire (1).
    Fig 3: Air Cleaner Body, Air Inlet Tube & Make-Up Air Hose
    GC0145278Courtesy of CHRYSLER GROUP, LLC
  5. Remove the air inlet tube (2) from the air cleaner body (1).
  6. Disconnect the make-up air hose (3) from the air cleaner body.
  7. Remove the support bracket bolt from the strut tower.
  8. Pull upward to disengage the pins from the rubber grommets and remove the air cleaner body (1).

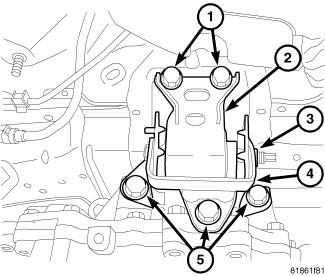

    Fig 4: Left Engine Mount Assembly
    GC0084958Courtesy of CHRYSLER GROUP, LLC
  9. Support the transaxle with a suitable jack.
  10. Remove the left mount through bolt (3).
  11. Remove the left mount bracket to body frame rail fasteners (1).
  12. Remove the mount (2).
