Insulator, Engine Mount, Rear: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

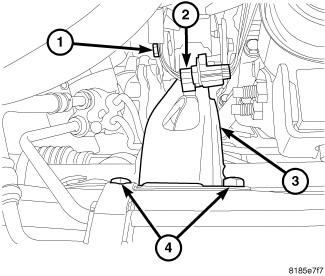

Fig 1: Rear Mount Through Bolt, Oxygen Sensor Connector, Rear Mount & Rear Mount Retaining Bolts
GC0084964Courtesy of CHRYSLER GROUP, LLC
  1. Remove rear mount retaining bolts (4).
  2. Remove rear mount through bolt (1).
  3. Remove oxygen sensor connector (2) from mount.
  4. Remove rear mount (3).
