Insulator, Engine Mount, Rear: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

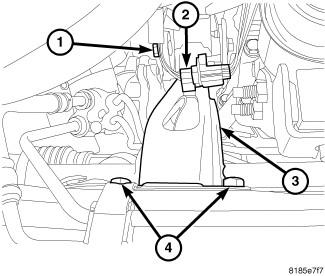

Fig 1: Rear Mount Through Bolt, Oxygen Sensor Connector, Rear Mount & Rear Mount Retaining Bolts
GC0084965Courtesy of CHRYSLER GROUP, LLC
  1. Position rear mount (3).
  2. Install rear mount retaining bolts (4) and tighten to 50 N.m (37 ft. lbs.).
  3. Install rear mount through bolt (1) and tighten to 47 N.m (35 ft. lbs.).
  4. Install oxygen sensor connector (2) retainer to mount (3).
