Insulator, Engine Mount, Right: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

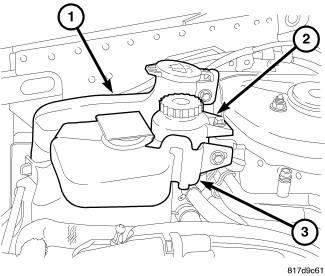

Fig 1: Windshield Washer Reservoir, Power Steering Reservoir & Coolant Reservoir
GC0098718Courtesy of CHRYSLER GROUP, LLC
  1. Remove coolant reservoir (3) and set aside.
  2. Remove power steering reservoir (2) and set aside.
  3. Remove windshield washer bottle (1).

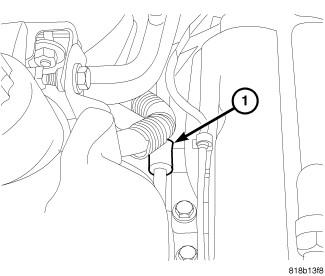

    Fig 2: Power Steering Line Support
    GC0098719Courtesy of CHRYSLER GROUP, LLC
  4. Remove power steering line support bracket (1) from engine mount.

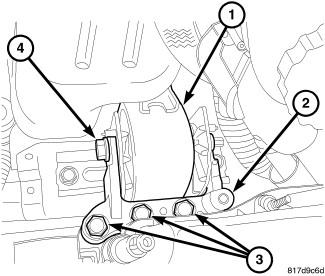

    Fig 3: Right Engine Mount Assembly
    GC0098720Courtesy of CHRYSLER GROUP, LLC
  5. Support transaxle with a block of wood and a suitable jack.
  6. Remove engine mount through bolt (4).
  7. Remove engine mount bracket bolts (3).
  8. Remove engine mount retaining bolts.
  9. Remove engine mount.
