Engine Block

WARNING: This page is about a different variant/trim than selected.

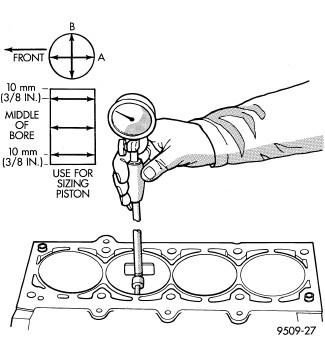

Fig 1: Checking Cylinder Bore Size

Courtesy of CHRYSLER GROUP, LLC

Clean cylinder block thoroughly and check all core hole plugs for evidence of leaking.
Examine block and cylinder bores for cracks or fractures.
Check block deck surfaces for flatness. Deck surface must be within service limit of 0.050 mm (0.002 in.).
