Seal, Crankshaft Oil, Front: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

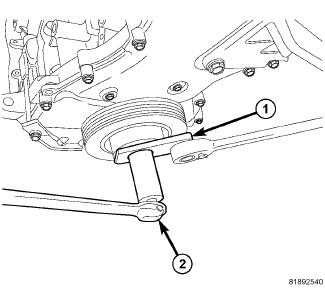

Fig 1: Damper Removal & Installation
GC0084976Courtesy of CHRYSLER GROUP, LLC
  1. Remove accessory drive belt.
  2. Install damper holder (special tool #9707, Holder, Vibration Damper) (1) and remove damper retaining bolt.
  3. Pull damper off crankshaft.

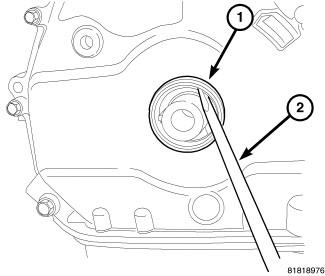

    Fig 2: Front Crankshaft Seal Removal
    GC0084977Courtesy of CHRYSLER GROUP, LLC
  4. Remove front crankshaft oil seal (1) by prying out with a screw driver (2). Be careful not to damage the cover seal surface.
