Seal, Crankshaft Oil, Front: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

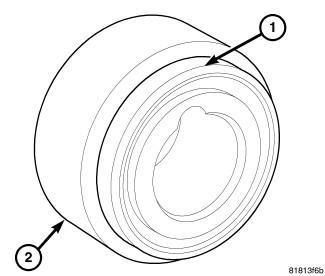

Fig 1: Crankshaft Oil Seal & Seal Installer 9506
GC0084978Courtesy of CHRYSLER GROUP, LLC
  1. Place seal (1) onto Seal installer (special tool #9506, Installer, Oil Seal) (2) with seal spring towards the inside of engine.

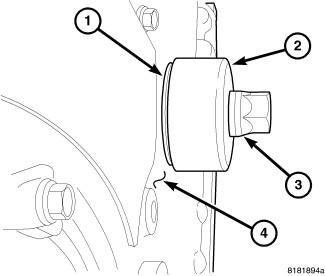

    Fig 2: Installing Front Seal
    GC0084979Courtesy of CHRYSLER GROUP, LLC
  2. Install new seal (1) by using Seal installer (special tool #9506, Installer, Oil Seal) (2) and crankshaft damper bolt (3).

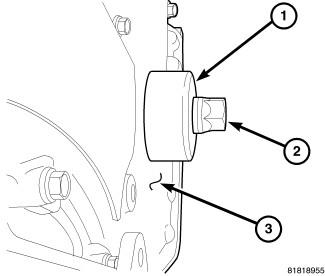

    Fig 3: Front Seal Installed
    GC0084980Courtesy of CHRYSLER GROUP, LLC
  3. Press seal into front cover until Seal Installer (special tool #9506, Installer, Oil Seal) (1) seats against timing chain cover (3).
  4. Remove seal installer (special tool #9506, Installer, Oil Seal) (1).

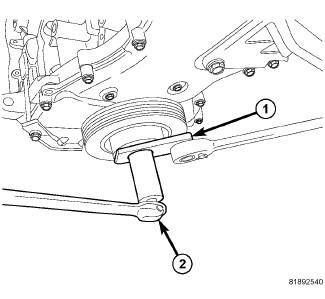

    Fig 4: Damper Removal & Installation
    GC0084981Courtesy of CHRYSLER GROUP, LLC
  5. Install crankshaft vibration damper.
  6. Oil the bolt threads and between the bolt head and washer.
  7. Install damper retaining bolt and damper holder (special tool #9707, Holder, Vibration Damper) (1). Tighten bolt to 210 N.m (155 ft. lbs.).
