Front Solenoid 1/1

WARNING: This page is about a different variant/trim than selected.

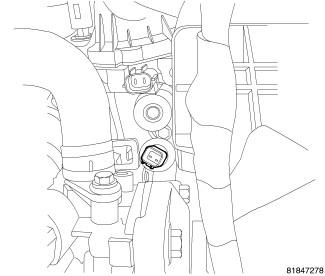

Fig 1: Oil Pressure Sensor
GC0085014Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Rotate hose clamp out of way.
  4. Disconnect oil pressure sensor electrical connector.
  5. Remove oil pressure sensor.
  6. Disconnect variable valve timing solenoid electrical connector.

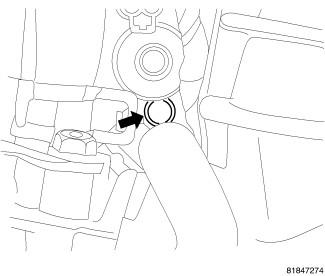

    Fig 2: Solenoid Mounting Bolt
    GC0085015Courtesy of CHRYSLER GROUP, LLC
  7. Remove variable valve timing solenoid mounting bolt.

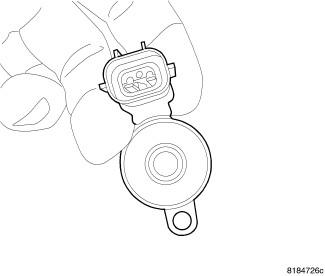

    Fig 3: Solenoid Mounting Tab 1/1
    GC0085016Courtesy of CHRYSLER GROUP, LLC
  8. Pull solenoid straight out of cylinder head.
