Rear Solenoid 1/2

WARNING: This page is about a different variant/trim than selected.

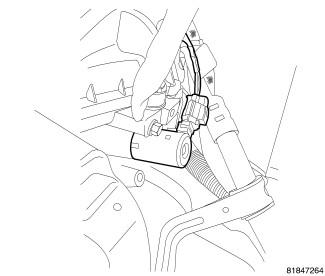

Fig 1: Solenoid Location 1/2

Courtesy of CHRYSLER GROUP, LLC

Disconnect negative battery cable.
Remove engine cover.
Disconnect variable valve timing solenoid electrical connector.
Remove variable valve timing solenoid mounting bolt.

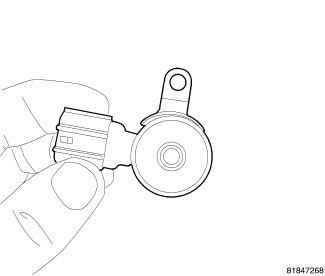

Fig 2: Solenoid Mounting Tab 1/2
Courtesy of CHRYSLER GROUP, LLC
Pull solenoid straight out of cylinder head.
