Front Solenoid 1/1

WARNING: This page is about a different variant/trim than selected.

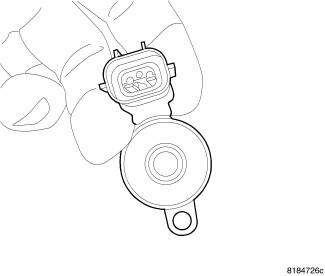

Fig 1: Solenoid Mounting Tab 1/1
GC0085019Courtesy of CHRYSLER GROUP, LLC
  1. Solenoid for front location 1/1. Note mounting tab location is different between front and rear solenoids.

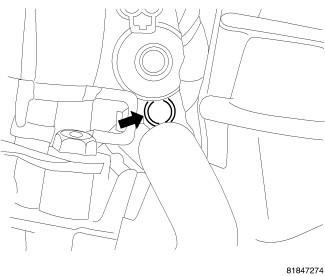

    Fig 2: Solenoid Mounting Bolt
    GC0098740Courtesy of CHRYSLER GROUP, LLC
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).

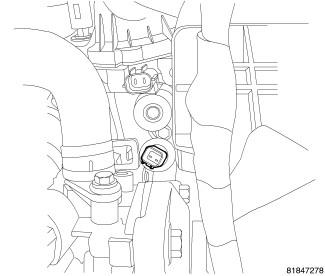

    Fig 3: Oil Pressure Sensor
    GC0085020Courtesy of CHRYSLER GROUP, LLC
  4. Install oil pressure sensor.
  5. Connect electrical connector to oil pressure sensor.
  6. Connect electrical connector to Variable valve timing solenoid.
  7. Connect negative battery cable.
  8. Install engine cover.
