Cooler, Oil: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

The oil cooler can not be cleaned out. In the event that the engine requires rebuilding or replacement, the oil cooler should be replaced.

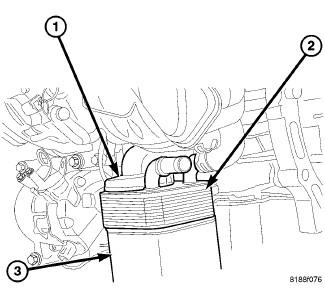

Fig 1: Oil Cooler

Courtesy of CHRYSLER GROUP, LLC

Raise vehicle on hoist.
Drain cooling system. Refer to STANDARD PROCEDURE .
Disconnect oil cooler coolant hoses.
Remove oil filter (3).

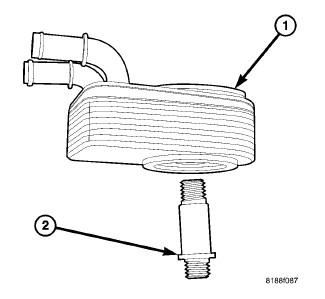

Fig 2: Oil Cooler & Oil Cooler Connector Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove oil cooler connector bolt (2).
Remove oil cooler (1).
