Cooler, Oil: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

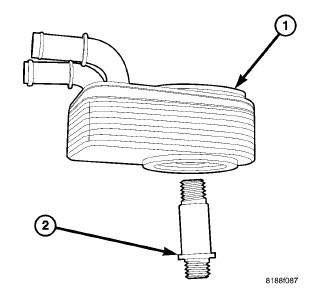

Fig 1: Oil Cooler & Oil Cooler Connector Bolt
GC0085034Courtesy of CHRYSLER GROUP, LLC
  1. Replace oil cooler seal (1).
  2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
  3. Install oil cooler connector bolt (2). Tighten connector bolt to 49 N.m (36 ft. lbs.).

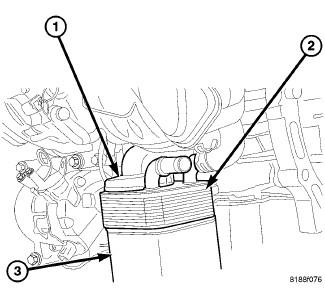

    Fig 2: Oil Cooler
    GC0085035Courtesy of CHRYSLER GROUP, LLC
  4. Install oil filter (3).
  5. Connect oil cooler coolant hose.
  6. Lower vehicle.
  7. Fill cooling system. Refer to STANDARD PROCEDURE .
