Pump, Engine Oil: Removal: Removal

When removing and installing the Balance Shaft/Oil Pump assembly in the vehicle, it is not necessary to align the plated links on the drive chain as long as the reference marks are created during the procedure.

1. Remove the oil pan

   Refer to PAN, OIL, REMOVAL .

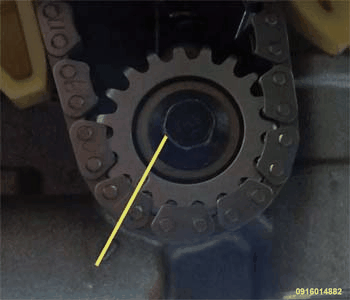

   Fig 1: Aligning Balance Shaft/Oil Pump Drive Gear And Housing Indicator

   Courtesy of CHRYSLER GROUP, LLC
2. Rotate the engine clockwise until the balance shaft/oil pump drive gear and the housing indicator are aligned.
   NOTE:

   IT IS VERY IMPORTANT THAT THE CRANKSHAFT STAYS STATIONARY DURING THE FOLLOWING STEPS. DO NOT MOVE THE CRANKSHAFT UNTIL THE INSTALLATION PROCEDURE IS COMPLETED.

3. Clean the balance shaft/oil pump assembly drive gear with Mopar® brake cleaner or similar.
   NOTE:

   Make sure the gear is clear of any oil to allow for marking.

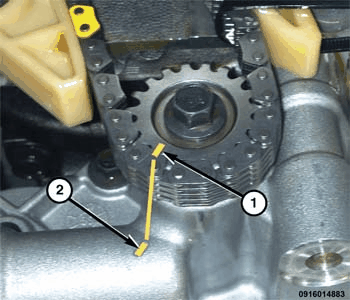

   Fig 2: Oil Pump Chain And Sprocket To Module Body Marks

   Courtesy of CHRYSLER GROUP, LLC
4. If the balance shaft/oil pump assembly is being reused, mark the oil pump chain and the sprocket (1) to the module body (2) for reassembly.
5. Install one air-conditioning compressor bracket bolt into the left forward corner thread boss.
   NOTE:

   The bolt will provide a sturdy point to secure a tie strap to hold the tensioner in the compressed position.

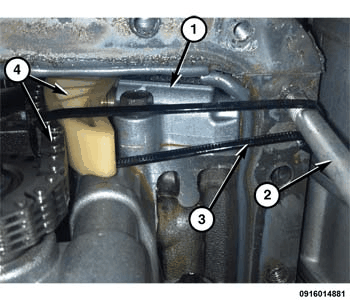

   Fig 3: Positioning Plastic Tie Strap

   Courtesy of CHRYSLER GROUP, LLC
6. Position a plastic tie strap (3) around the chain, tensioner (4) and bolt (2) that was previously installed.
7. Push the chain, guide and tensioner (1) to the compressed position.
8. Tighten the tie strap to hold the components together.
   NOTE:

   The tighter the strap, the more room for removal and installation.

9. Remove the balance shaft/oil pump assembly mounting bolts.
10. Remove assembly from the engine by tilting the rear of the balance shaft/oil pump assembly downward while lifting the drive gear out of the chain links.
