Sensor, Oil Temperature: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

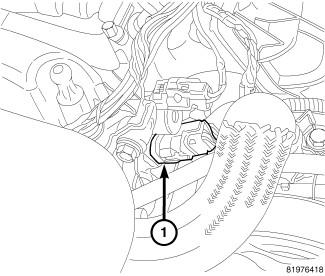

Fig 1: Oil Temperature Sensor
GC0098743Courtesy of CHRYSLER GROUP, LLC
  1. If re-using the oil temperature sensor, coat the threads with Mopar® thread sealant.
  2. Install oil temperature sensor (1). Tighten to 18 N.m (160 in. lbs.).
  3. Connect electrical connector.
