Switch, Oil Pressure: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the oil pressure switch is removed, it must be replaced with a new switch.

Fig 1: A/C Compressor Removal/Installation

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Raise and support the vehicle.
Remove the front skid plate, if equipped.
Remove the splash shield from the right side frame rail. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
Remove the three bolts (2) and reposition the A/C compressor (1).

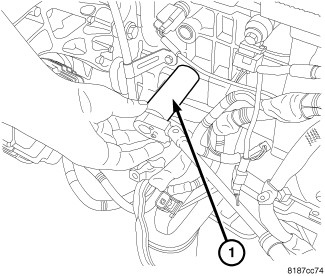

Fig 2: Oil Sender
Courtesy of CHRYSLER GROUP, LLC
Disconnect the oil pressure switch electrical connector.
Remove the oil pressure switch using Oil Pressure Socket (special tool #C-4597, Socket, Oil Pressure) (1) or equivalent and discard the switch.
