Switch, Oil Pressure: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

The oil pressure switch has tapered threads, over tightening could crack the engine block.

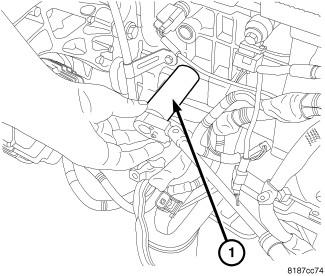

Fig 1: Oil Sender

Courtesy of CHRYSLER GROUP, LLC

Install a new oil pressure switch using Oil Pressure Socket (special tool #C-4597, Socket, Oil Pressure) (1) or equivalent. Tighten switch to 8 N.m (71 in. lbs.).
Connect the oil pressure switch electrical connector.

Fig 2: A/C Compressor Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Position the A/C compressor (1) and install three mounting bolts (2). Tighten bolts to 25 N.m (18 ft. lbs.).
Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the splash shield to the right side frame rail. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
Install the front skid plate, if equipped.
Reconnect the negative battery cable.
