Valve, Oil Pressure Relief: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

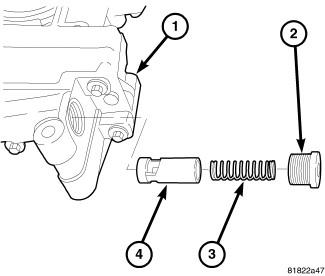

Fig 1: Oil Pressure Relief Valve
GC0085023Courtesy of CHRYSLER GROUP, LLC
  1. Remove oil pan. Refer to PAN, OIL, REMOVAL .
  2. Remove pressure regulating valve cap (2).
  3. Remove pressure regulating valve spring (3) and valve (4).
