Valve, Oil Pressure Relief: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

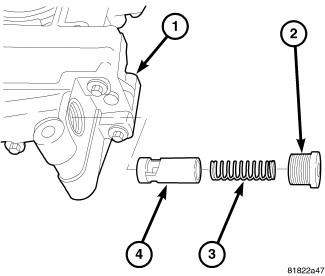

Fig 1: Oil Pressure Relief Valve

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Pressure regulating valve (4) can be service separately from the oil pump assembly.

Inspect pressure relief valve (4) scoring, gouging, or debris. Replace as needed.
Inspect the pressure relief valve bore in the pump for scoring, gouging, or debris.
If pump bore is damaged, replace balance shaft module.
