Manifold, Exhaust: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

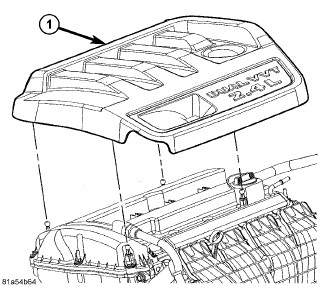

Fig 1: Engine Cover - 2.4L

Courtesy of CHRYSLER GROUP, LLC

Remove engine cover (1).
Disconnect negative cable from battery.

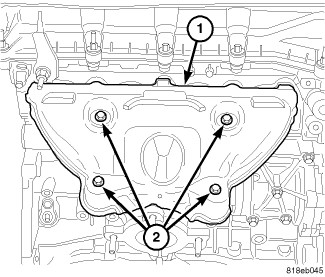

Fig 2: Exhaust Manifold Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (2) attaching upper heat shield.
Remove upper heat shield (1).

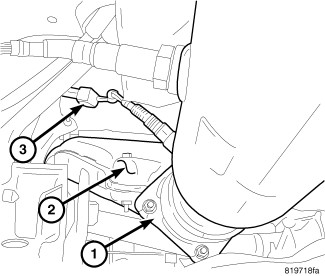

Fig 3: Exhaust Manifold Bolts, Heat Shield & Oxygen Sensor Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect exhaust pipe (1) from manifold.
Disconnect oxygen sensor electrical connector (3).

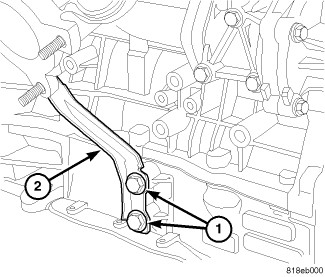

Fig 4: Exhaust Manifold Support Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove manifold support bracket (2).
Remove lower exhaust manifold heat shield.

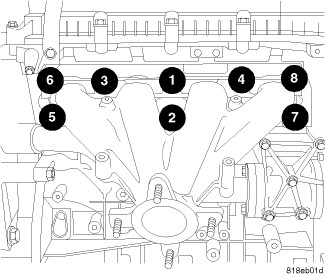

Fig 5: Exhaust Manifold Retaining Fasteners Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Remove exhaust manifold retaining fasteners.
Remove and discard manifold gasket.
