Manifold, Exhaust: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

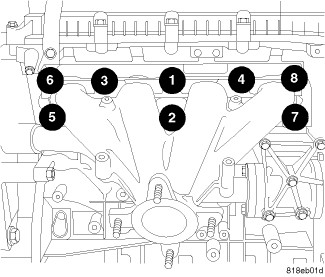

Fig 1: Exhaust Manifold Retaining Fasteners Tightening Sequence

Courtesy of CHRYSLER GROUP, LLC

Install a new exhaust manifold gasket DO NOT APPLY SEALER .
Position exhaust manifold in place.
Tighten the exhaust manifold bolts to 34 N.m (25 ft. lbs.).

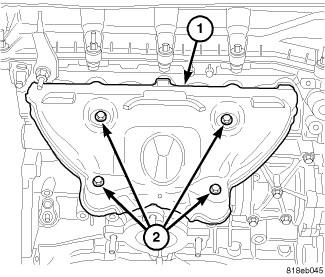

Fig 2: Exhaust Manifold Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Install exhaust manifold heat shields (1). Tighten bolts (2) to 12 N.m (105 in. lbs.).

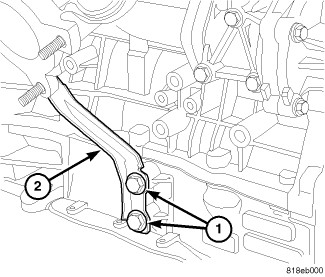

Fig 3: Exhaust Manifold Support Bracket
Courtesy of CHRYSLER GROUP, LLC
Install exhaust manifold support bracket (2).

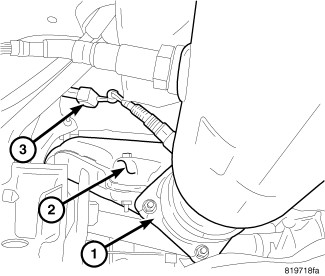

Fig 4: Exhaust Manifold Bolts, Heat Shield & Oxygen Sensor Connector
Courtesy of CHRYSLER GROUP, LLC
Install new catalytic converter gasket.
Install exhaust pipe to manifold (1). Tighten fasteners to 28 N.m (250 in. lbs.).
Connect oxygen sensor electrical connector (3).

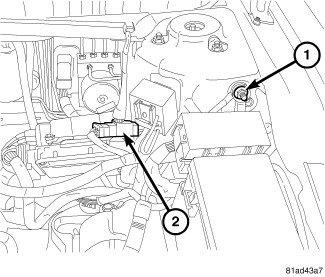

Fig 5: Identifying Battery Cables
Courtesy of CHRYSLER GROUP, LLC
Connect negative battery cable (1).

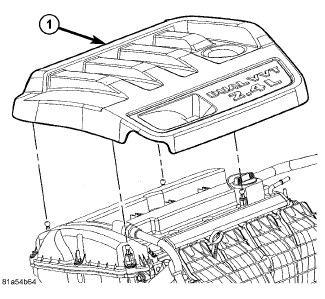

Fig 6: Engine Cover - 2.4L
Courtesy of CHRYSLER GROUP, LLC
Install engine cover (1).
