Park POWERFLOW

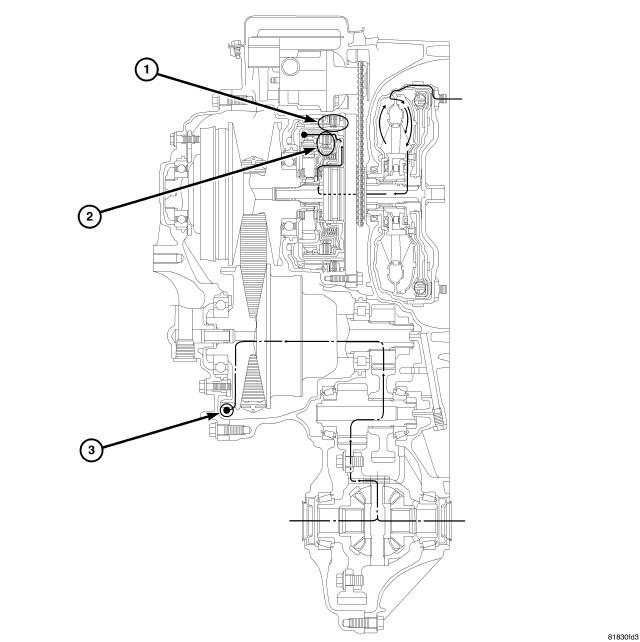

Fig 1: Park Powerflow

Courtesy of CHRYSLER GROUP, LLC

1 - REVERSE BRAKE (RELEASED)

2 - FORWARD CLUTCH (RELEASED)

3- PARKING GEAR (FIXED)

When the forward clutch and the reverse brake are released, the driving force from the engine runs idly and power is not transmitted to the primary pulley.

When the parking gear is fixed, the torque load from the tires is not transmitted up to the primary pulley.
