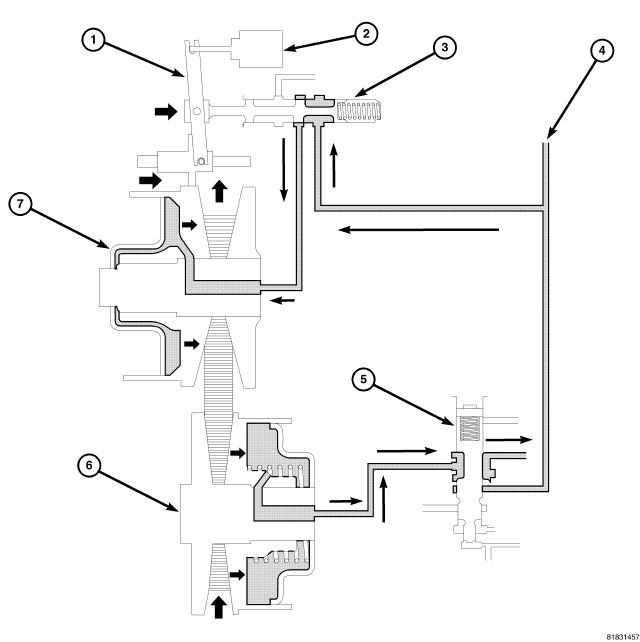

Shift Low To High - Phase 3
| 1 - PULLEY RATIO LINKAGE |
| 2 - STEPPER MOTOR |
| 3 - RATIO CONTROL VALVE |
| 4 - LINE PRESSURE |
| 5 - SECONDARY VALVE |
| 6 - SECONDARY PULLEY |
| 7 - PRIMARY PULLEY |
By applying line pressure to the primary pulley, the sliding element moves to the right direction and the steel belt is pushed outward on the primary pulley.
By actuating the "moving-pulley" of the primary pulley to the right direction, the ratio control valve starts to move to the right direction through the pulley ratio linkage which is driven by the sliding element.
By pulling the steel belt to the primary pulley side, the moving-pulley of the secondary pulley moves to the right side also.
