Shift High To Low - Phase 3

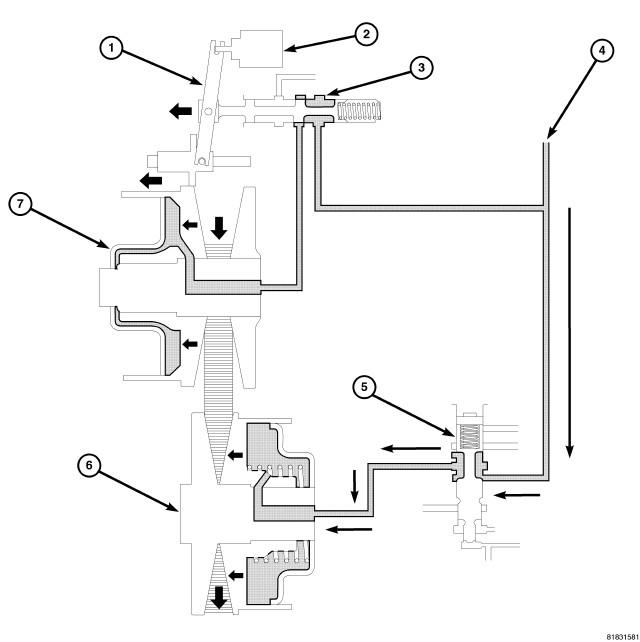

Fig 1: Shifting High To Low - Phase 3

Courtesy of CHRYSLER GROUP, LLC

1 - PULLEY RATIO LINKAGE

2 - STEPPER MOTOR

3 - RATIO CONTROL VALVE

4 - LINE PRESSURE

5 - SECONDARY VALVE

6 - SECONDARY PULLEY

7 - PRIMARY PULLEY

Additionally, the moving-pulley of the secondary pulley moves to the left direction and the steel belt is pushed outside. In accordance with this, the sliding element of the primary pulley moves to the left side.

The moving-pulley of the primary pulley moves to the right direction, then the ratio control valve also moves to the left direction and closes the drain circuit; this is a completion of the shift.
