Cable, Shift Interlock: Installation: Installation

Install the cable between the shifter and the steering column.
Install the shifter in place.

Fig 1: Shifter Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the shifter bolts (1) and tighten to 6 N.m (53 in. lbs.).
Clip the shift interlock cable to the shifter.

Fig 2: Lock Cylinder Housing & Interlock Cable Connector
Courtesy of CHRYSLER GROUP, LLC
With the ignition switch in the ON position, push the interlock cable (2) into the column (1) until it clicks into place.
Install the lower shroud.
Adjust the shift interlock cable. Refer to ADJUSTMENTS .

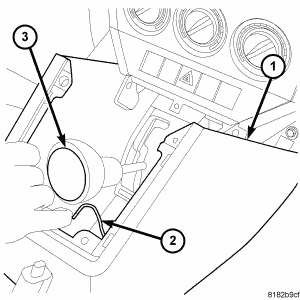

Fig 3: Lock Cylinder Housing & Interlock Cable Connector
Courtesy of CHRYSLER GROUP, LLC
Install the shifter housing (1).
