Fluid Cooler

Fig 1: Fluid Filter

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Apply CVT fluid on the sealing area when installing the CVT fluid filter.

Install the CVT fluid filter (1) into the transaxle case (certain models).

Fig 2: CVT Fluid Filter O-Ring
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not re-use the o-ring. Apply CVT fluid when installing the O-ring.
Install the new O-ring (1) onto the CVT fluid filter.

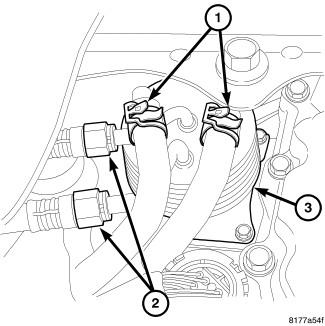

Fig 3: Cooler/Transmission Lines At Cooler
Courtesy of CHRYSLER GROUP, LLC
Install the CVT fluid cooler onto the transaxle case.
Install and tighten the mounting bolts to 4 N.m (37 in.lbs.).
Install the coolant lines (1) at the cooler.
Install the transmission lines (2) at the cooler (3).
Install the left front splash shield.
Install the left front tire.
Lower the vehicle.
Inspect the coolant level. Refer to STANDARD PROCEDURE .
Inspect the transmission fluid level. Refer to FLUID, STANDARD PROCEDURE .
