Bypass Valve

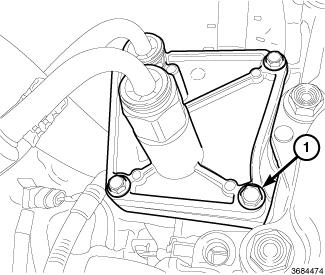

Fig 1: Four Mounting Bolts

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Do not re-use the o-ring. Apply CVT fluid when installing the O-ring.

Install the new O-ring to the bypass valve plate.
Install the bypass valve plate to the transmission.
Install the four mounting bolts (1) and tighten to 4 N.m (37 in.lbs.).

Fig 2: Transmission Fluid Lines
Courtesy of CHRYSLER GROUP, LLC
Connect the transmission lines (1). Refer to TUBES AND HOSES, TRANSMISSION OIL COOLER, STANDARD PROCEDURE .
Install the belly pan. Refer to INSTALLATION .
Install the left front tire. Refer to INSTALLATION .
Lower the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Inspect the transmission fluid level. Refer to FLUID, STANDARD PROCEDURE .
