Seal, Axle Drive Shaft, Right: Removal: Removal

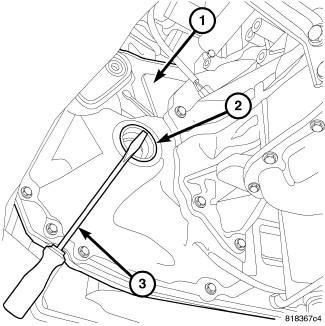

Fig 1: Removing Right Side Differential Oil Seal

Courtesy of CHRYSLER GROUP, LLC

1. Remove halfshaft. Refer to REMOVAL .
2. If all wheel drive, remove the PTU. Refer to REMOVAL .
3. Remove the seal (2) from the transaxle using a screwdriver (3).
