Seal, Axle Drive Shaft, Right: Installation: Installation

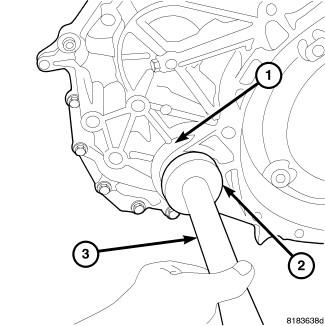

Fig 1: Installing Right Side Differential Oil Seal

Courtesy of CHRYSLER GROUP, LLC

1. Install the seal using Installer (special tool #9877, Installer, Seal) (2) and Handle (special tool #C-4171, Driver Handle, Universal) (3).
2. If all wheel drive, install the PTU. Refer to INSTALLATION .
3. Install Halfshaft. Refer to INSTALLATION .
4. Road test vehicle and inspect for leaks.
