Shifter, Transmission: Removal: Removal

  1. Remove the shifter housing. Refer to HOUSING, SHIFTER, REMOVAL .
  2. Unplug the electrical connector at the shifter.
  3. Detach interlock cable from shifter.

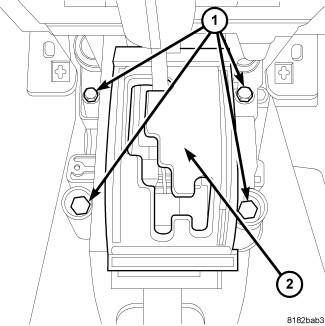

    Fig 1: Shifter Hold Down Bolts
    GC0084589Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolts (1) at the shifter.
  5. Separate the shift cable from the shifter.
  6. Remove the shifter.
