Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Highbeam Headlamps on.
4. With the scan tool read the DTC information.
  Does the scan tool read: B1633-LEFT HI BEAM CONTROL CIRCUIT LOW?

  Yes
  - Go To 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
(L33) LEFT HIGHBEAM OUTPUT CIRCUIT

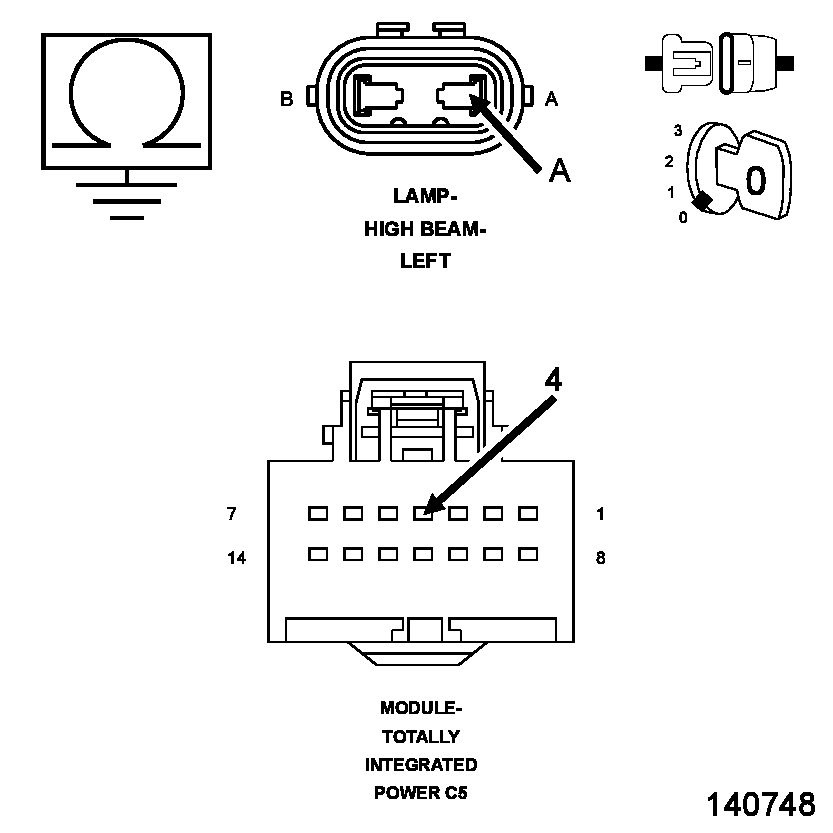

Fig 1: Measuring Resistance Between Ground & Left High Beam Output Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the TIPM C5 harness connector.
3. Disconnect the Left Headlamp harness connector.
4. Measure the resistance between ground and the Left Highbeam Output circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (L33) Left Highbeam Output circuit for a short to ground condition.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
