Diagnostic Test

  1. DETERMINE ACTIVE OR STORED DTC
    NOTE:

    Make sure that the battery is fully charged.

    NOTE:

    The scan tool, SRS Load Tool Kit (special tool #8443A, SRS Load Tool), and DVOM are required to perform the following test.

    1. Turn the ignition on.

      Select ACTIVE or STORED DTC:

      ACTIVE DTC

      • Go To  2

      STORED DTC

      • Go To  5
  2. CHECK FOR SHORTED SQUIB CIRCUITS IN RIGHT SEAT SQUIB AIRBAG
    WARNING:

    Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Right Seat Airbag connector.
      WARNING:

      To avoid serious or fatal injury, do not place an intact uncoupled Seat Squib Airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed.

      NOTE:

      Check connectors - Clean and repair as necessary.

    2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-1, Jumpers, 2 Pin) to the Right Seat Airbag connector.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    3. With the scan tool, read the active ORC DTC.

      Does the scan tool display: B1C2C-RIGHT SIDE SEAT THORAX SQUIB 1 HIGH?

      Yes

      • Go To  3

      No

      WARNING:

      Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

  3. CHECK FOR SHORTED RIGHT SEAT AIRBAG SQUIB CIRCUITS IN THE SEAT BACK

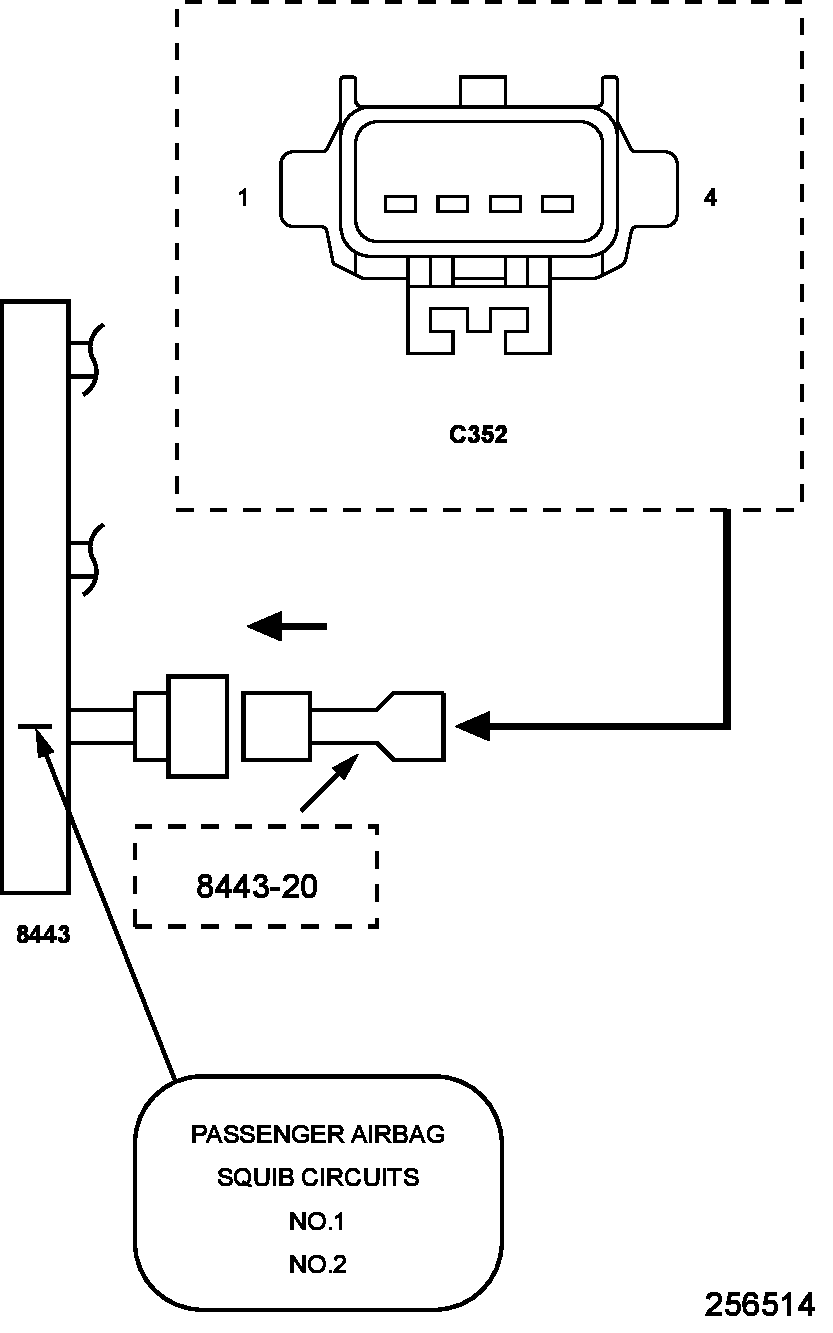

    Fig 1: Checking Right Seat Airbag Squib Circuits For A Short
    GC0099296Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Right Seat Airbag C352 in-line connector (under Right Seat).
      NOTE:

      Check connectors - Clean and repair as necessary.

    2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-20, Jumper, SRS Load Tool) to the Right Seat Airbag C352 in-line connector (Body Side).
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    3. With the scan tool, read the active ORC DTC.

      Does the scan tool display : B1C2C-RIGHT SIDE SEAT THORAX SQUIB 1 HIGH

      Yes

      • Go To  4

      No

      WARNING:

      Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

      • In accordance with the Service Information repair or replace the Right Seat Airbag wiring harness (Side Airbag Jumper). Right Seat Airbag circuits shorted to high between the C353 in-line connector (Side Airbag Jumper) and the Right Seat Airbag connector.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
  4. CHECK (R6) RIGHT SEAT SQUIB 1 LINE 2 CIRCUIT AND (R8) RIGHT SEAT SQUIB 1 LINE 1 CIRCUIT FOR A SHORT TO BATTERY

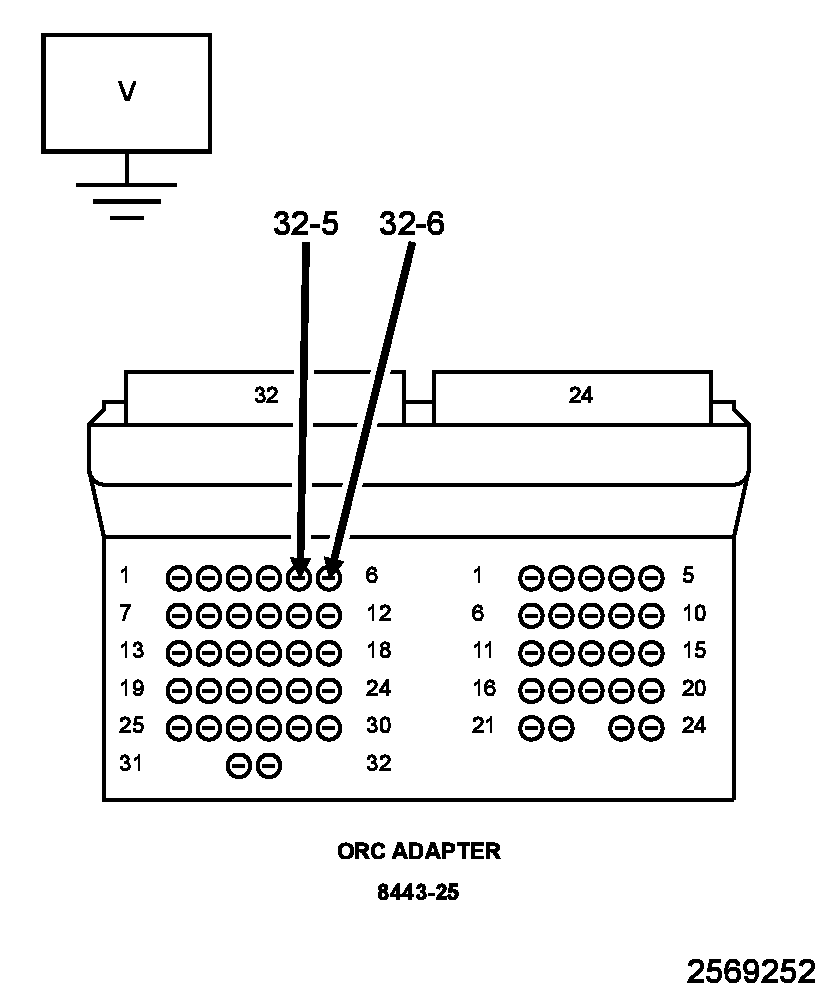

    Fig 2: Checking Right Seat Squib 1 Line Circuits For Short To Battery
    GC0138222Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-20, Jumper, SRS Load Tool) from the Right Seat Airbag connector.
    2. Disconnect the ORC connectors.
      NOTE:

      Check connectors - Clean and repair as necessary.

    3. Connect the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) Adaptor to the ORC connectors.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. Measure the voltage of the (R6) Right Seat Squib 1 Line 2 circuit between the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity 32-6 and ground.
    5. Measure the voltage of the (R8) Right Seat Squib 1 Line 1 circuit between the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity 32-5 and ground.

      Is there any voltage present on either circuit?

      Yes

      • In accordance with Service Information repair or replace the Right Seat circuits. Right Seat circuits shorted high between the C352 in-line connector (body side) and the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) (32 way) connector.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .

      No

      WARNING:

      If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

      WARNING:

      Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

  5. CHECKING STORED OR INTERMITTENT CODES
    NOTE:

    Diagnose and repair all active codes before diagnosing stored codes.

    1. With the scan tool, record and erase all Airbag System Module DTCs.
      WARNING:

      Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    2. Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
    3. Reconnect all disconnected components and harness connectors.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. With the scan tool, monitor for active codes while performing the following:
      • Wiggle the wiring harness and connectors of the related airbag circuit.
      • Continue the test until either a code becomes active or the problem area is isolated.
    5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question/causing the intermittent condition.

      Are any ACTIVE DTCs present?

      Yes

      No

      • No problem found at this time. Erase all codes before returning the vehicle to the customer.
